Components And Components Location: Components

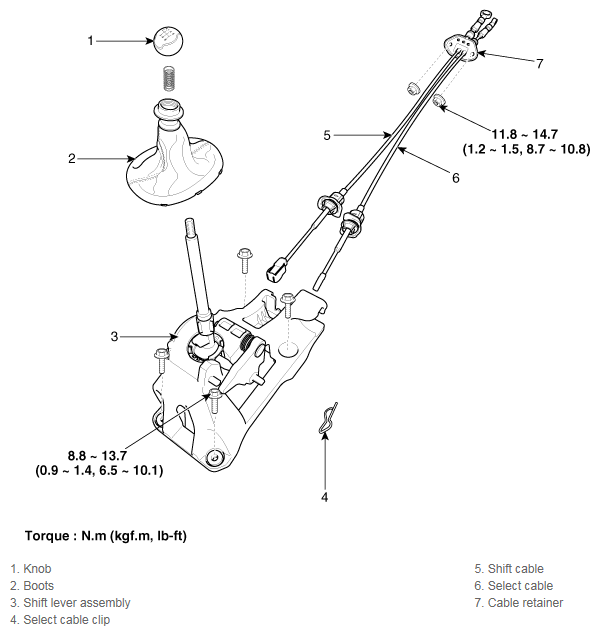

Fig 1: Control Cable Exploded View With Torque Specifications
G11950302Courtesy of KIA MOTORS AMERICA, INC.
