Components And Components Location: Components

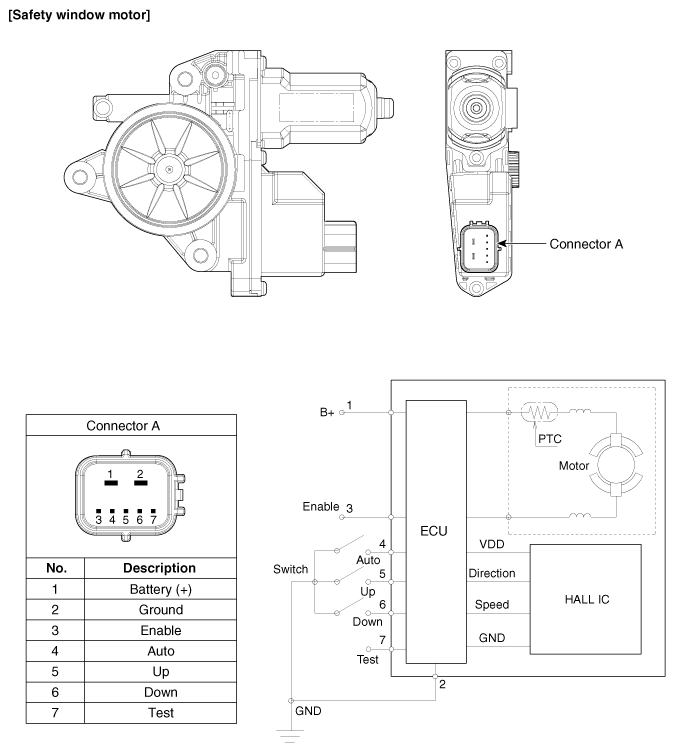

Fig 1: Power Window Motor Component (Safety Window Motor)
G11937990Courtesy of KIA MOTORS AMERICA, INC.

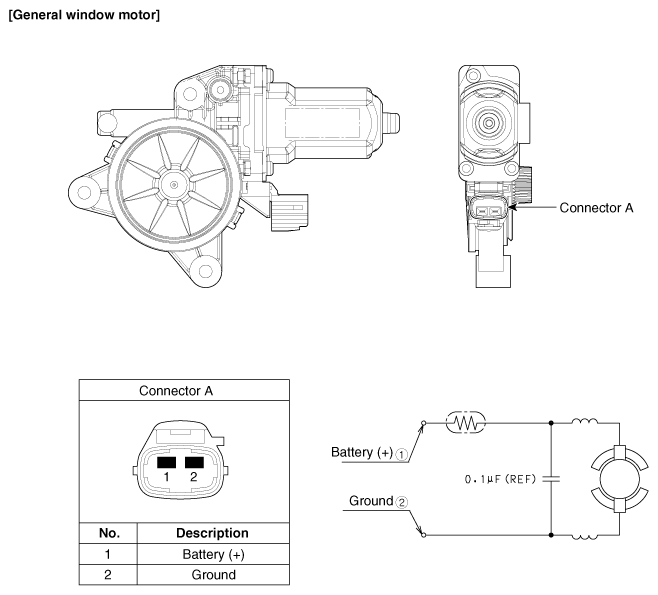

Fig 2: Power Window Motor Component (General Window Motor)
G11937991Courtesy of KIA MOTORS AMERICA, INC.
