Operation For Each Function Of Button Starting

• The electric power is changed through OFF → ACC→IGN→OFF by pressing the button without stepping on the brake (Or with stepping on the brake) inside the car with FOB key (However, repeat ACC↔IGN when it is not in P. Converting to OFF is impossible.)
• The starting is ignited when the button is pressed with stepping on the brake at P/N position with FOB key.

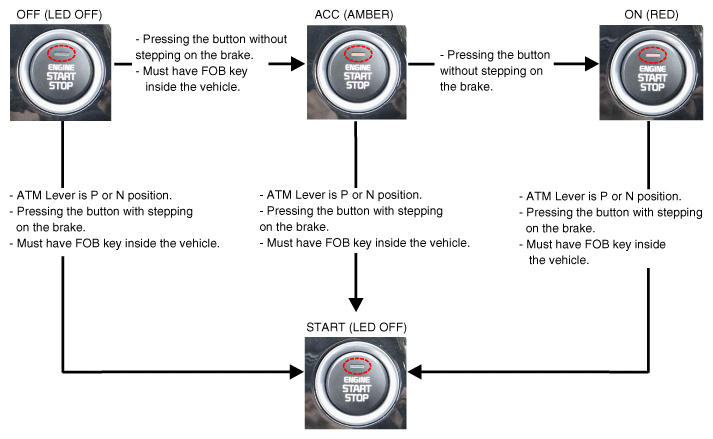

  Fig 1: Button Starting Operation Flow Chart (Electric Power ON/Ignition ON)

  Courtesy of KIA MOTORS AMERICA, INC.

• The ignition can be switched OFF only from the state of vehicle stop. (It is possible in any position of ATM lever.)
• To park in neutral gear, switch OFF the electric power in P and shift the lever while pressing the ATM Lever Release button.

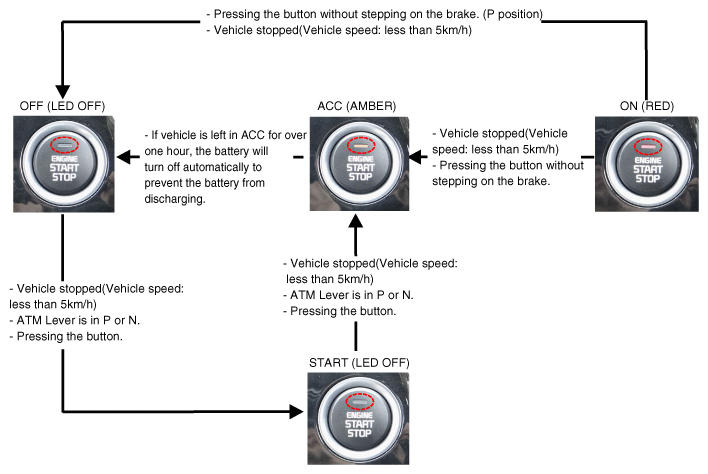

  Fig 2: Button Starting Operation Flow Chart (Electric Power OFF/Ignition OFF)

  Courtesy of KIA MOTORS AMERICA, INC.

• This method is used to stop the engine forcibly in the event of vehicle emergency (e.g. fuel leakage or unintended acceleration).
• The engine is turned off and returns to ACC state if the button is long pressed for 2 seconds or pressed 3 times consecutively within 3 seconds while driving. For the next 30 seconds, restarting is possible regardless of the presence of FOB key inside the vehicle, and pressing the button without stepping on the brake (or with stepping on the brake) with FOB key inside the vehicle will change the electric power through OFF - ACC → IGN → OFF. (However, if gear is not in P, ACC ↔ AGN will be repeated. The conversion to OFF is impossible.)

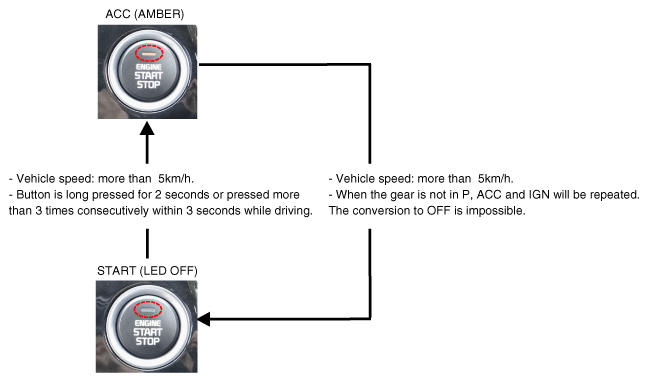

  Fig 3: Button Starting Operation Flow Chart (Turn Off Ignition Forcibly)

  Courtesy of KIA MOTORS AMERICA, INC.

Engine can be started if the brake pedal is depressed within 0.5 seconds after pressing the start button in engine "OFF" state.

• Electric power OFF: LED OFF
• Electric power ACC state: Amber LED ON
• Electric power ON: Blue LED ON
• While cranking: Maintain the previous LED ON state before cranking
• Starting ON state: LED OFF
