Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim. (Refer to Body - "FRONT DOOR TRIM ")
  3. Disconnect the motor connector from the motor.

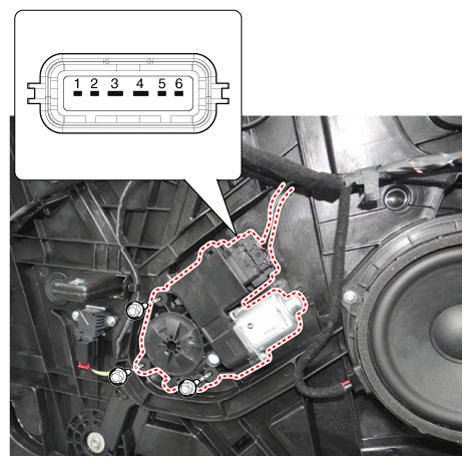

    Fig 1: Locating Front Power Window Motor Connector With Connector End View
    G12298785Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the terminals No. 1 and No. 6 to battery voltage (12V) and check that the motor operates smoothly when connecting the terminals below.

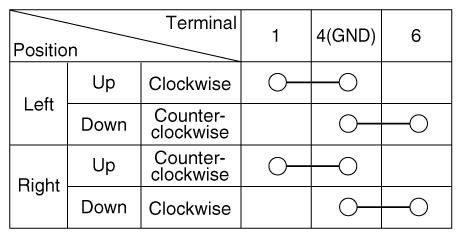

Fig 2: Front Power Window Motor Terminal Position Chart
G12298786Courtesy of KIA MOTORS AMERICA, INC.
