Diagnosis With KDS/GDS

The body electrical system can be quickly diagnosed for failed parts by using vehicle diagnostic system (KDS/GDS).
The diagnostic system (KDS/GDS) provides the following information.
1. Self diagnosis: Checks and displays the failure code (DTC)
2. Current data: Checks the system input/output data state
3. Actuation test: Checks the system operating condition
4. Additional function: Other controls such as the system option and zero point
Select the "Car model" and the system to be checked in order to check the vehicle with the tester.
Select the "Body Control Module (BCM)" to check the driver seat or assist door module (DDM/ADM).
Select the "Current Data" menu to check the current state of the input/output data.
The input/output data for the sensors corresponding to the driver door module or assist door module (DDM/ADM) can be checked.

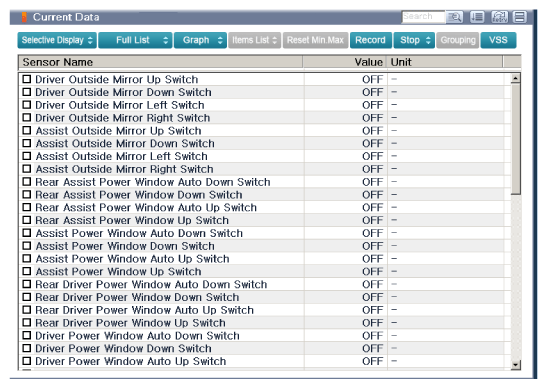

Fig 1: Screen Display - Select Current Data Menu
Courtesy of KIA MOTORS AMERICA, INC.
To check the power door lock operation by force, select "Actuation test".
