Driver/Passenger Power Window Switch

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

3. Loosen the power window switch assembly mounting screws.
4. Remove the power window switch assembly (A) after disengaging the mounting clips.

Fig 1: Locating Power Window Switch Assembly With Mounting Clips

Courtesy of KIA MOTORS AMERICA, INC.

information

Replace any damaged clips.

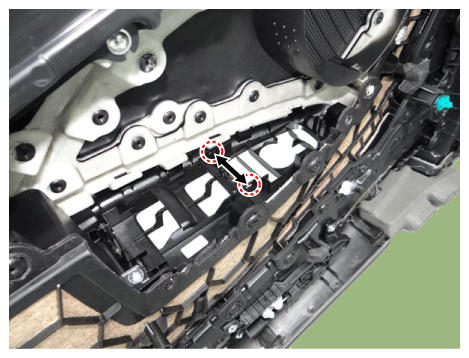

Fig 2: Replace Damaged Clips

Courtesy of KIA MOTORS AMERICA, INC.
