Rear Power Window Switch

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool to prevent damaging the surface.
Be careful of storing and handling the trim during removal/installation as lubricant and oil may leave stain on the trim.

Disconnect the negative (-) battery terminal.
Remove the rear door trim. (Refer to Body - "REAR DOOR TRIM ")
Loosen the power window switch assembly mounting screws.
Remove the power window switch assembly (A) after disengaging the mounting clips.

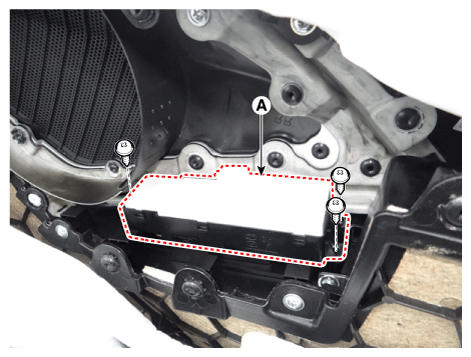

Fig 1: Locating Power Window Switch Assembly With Mounting Clips

Courtesy of KIA MOTORS AMERICA, INC.

information

Replace any damaged clips.

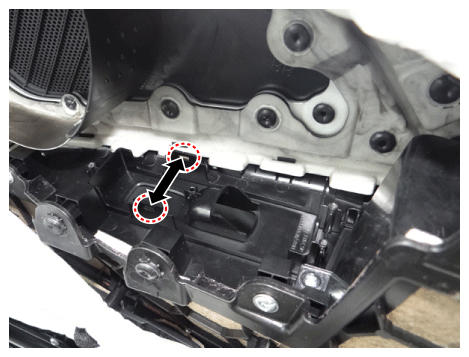

Fig 2: Replace Damaged Clips

Courtesy of KIA MOTORS AMERICA, INC.
