Battery Terminal

Move back and forth to check if the battery terminals (A) are loose or corroded. If the terminals are corroded, clean them.

Fig 1: Battery Terminal (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Battery Terminal (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

If battery positive connection is loose, disconnect ground (GND) cable first before attempting to remove or tighten plus connection, to prevent personal injury.
If the battery clamp on battery positive (+) terminal is not seated securely:
1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2. Tighten battery clamp (A) on battery positive (+) terminal
  Battery positive (+) terminal :

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
Fig 3: Locating Battery Clamp On Battery Positive (+) Terminal
Courtesy of KIA MOTORS AMERICA, INC.
If the battery clamp on battery negative (-) terminal is not seated securely:
1. Tighten battery clamp (A) on battery negative (-) terminal.
  Battery negative (-) terminal :

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

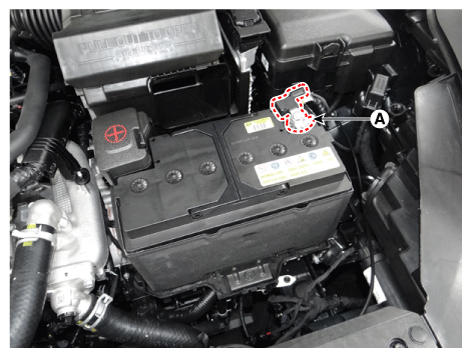

Fig 4: Locating Battery Clamp On Battery Negative (-) Terminal
Courtesy of KIA MOTORS AMERICA, INC.
