Components And Components Location: Components

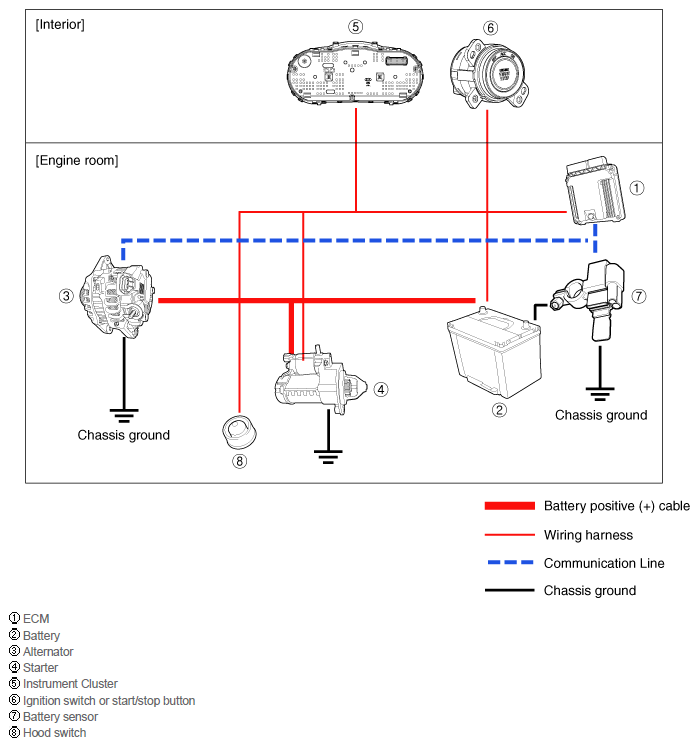

Fig 1: Charging System Communication Diagram

G12290426

Courtesy of KIA MOTORS AMERICA, INC.
