Circuit Diagram

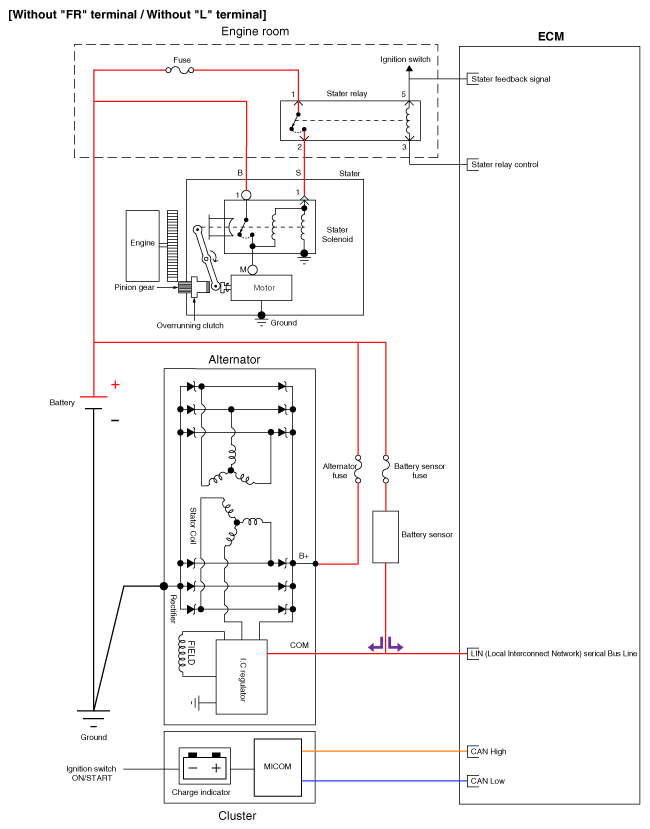

Fig 1: ECM Circuit Diagram (1 Of 2)
G12290427Courtesy of KIA MOTORS AMERICA, INC.

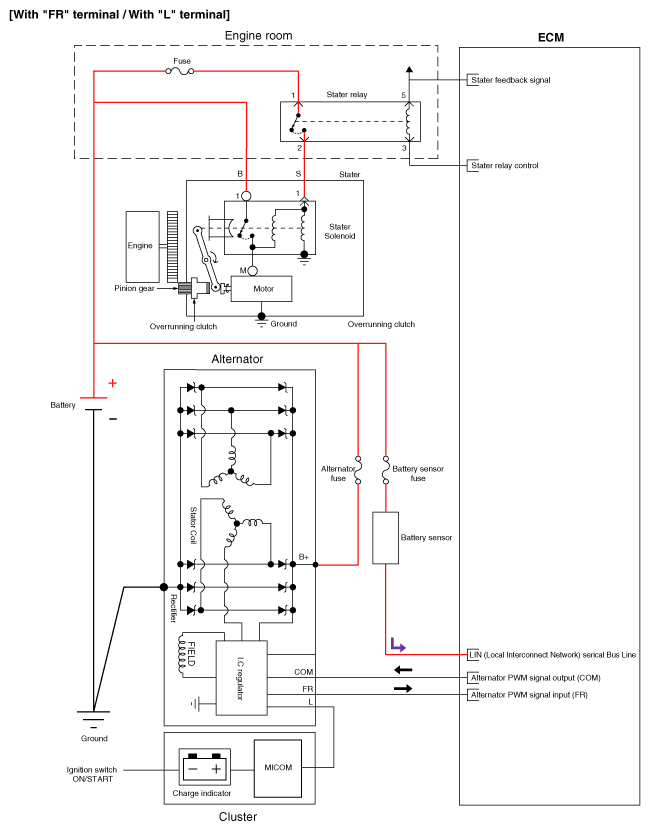

Fig 2: ECM Circuit Diagram (2 Of 2)
G12290428Courtesy of KIA MOTORS AMERICA, INC.
