Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

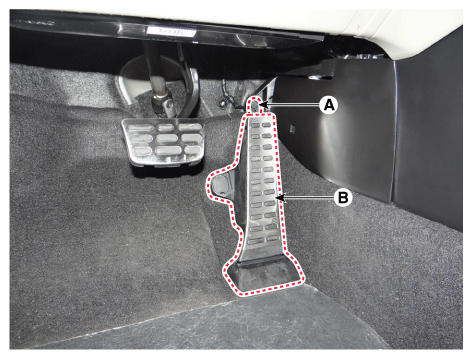

- Disconnect the accelerator position sensor connector (A).
- Remove the accelerator position sensor (B) after loosening the mounting bolts.
Accelerator pedal sensor mounting bolt :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
