Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear-LH wheel, tire, and the inner wheel house (A).

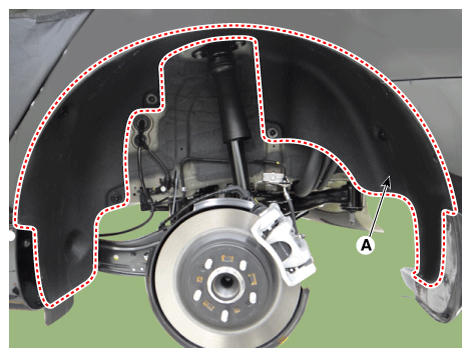

    Fig 1: Removing Rear-LH Wheel, Tire And Inner Wheel House
    G12290796Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the canister close valve connector (A).

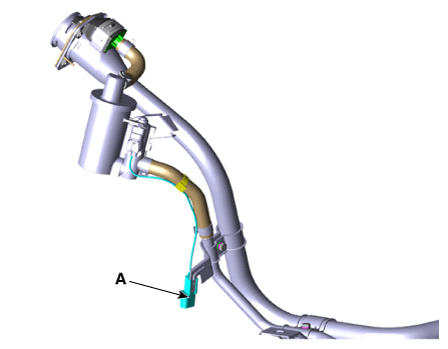

    Fig 2: Disconnecting Canister Close Valve Connector
    G12290797Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the vapor hoses (A).
  5. Remove installation bolts (B) and then remove the fuel tank air filter & CCV.

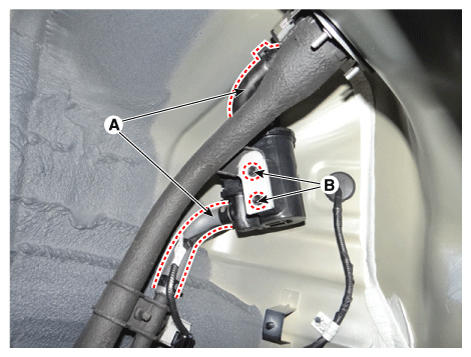

    Fig 3: Disconnecting Vapor Hoses
    G12290798Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.

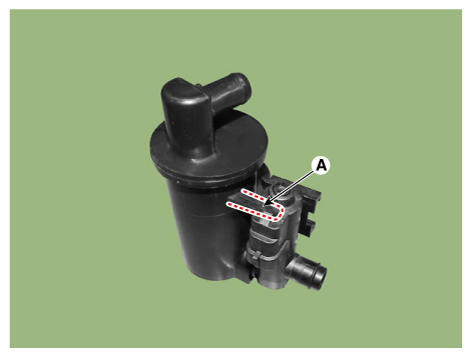

    Fig 4: Releasing Lever
    G12290799Courtesy of KIA MOTORS AMERICA, INC.

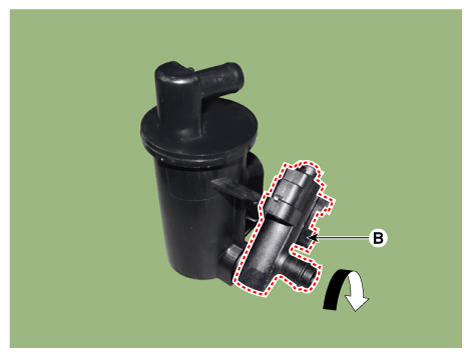

    Fig 5: Rotating Canister Close Valve From Fuel Tank Air Filter
    G12290800Courtesy of KIA MOTORS AMERICA, INC.
