Components Location

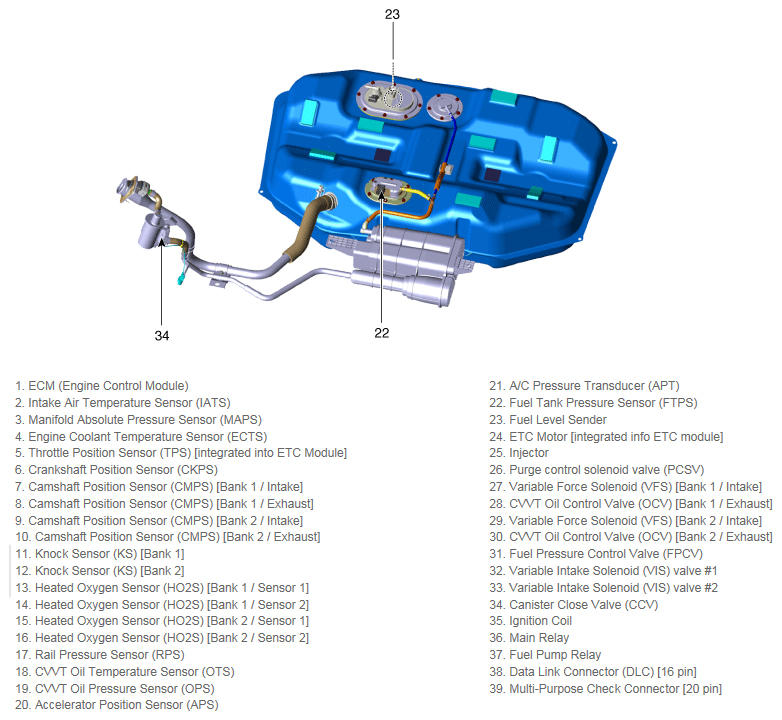

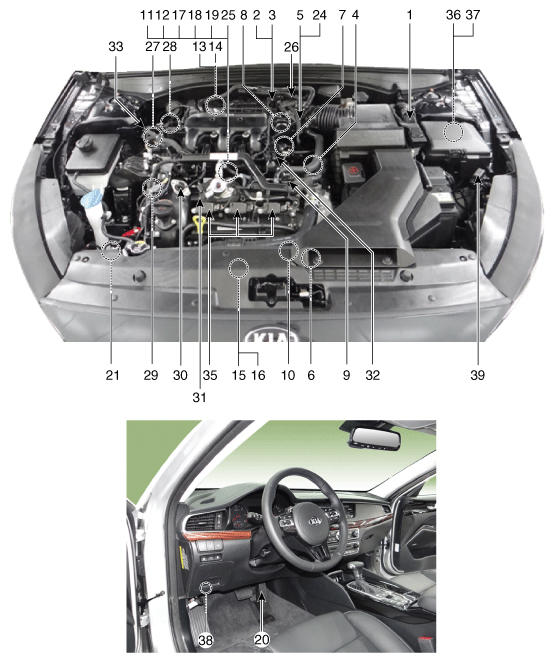

Fig 1: Engine Control System Components Location (1 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

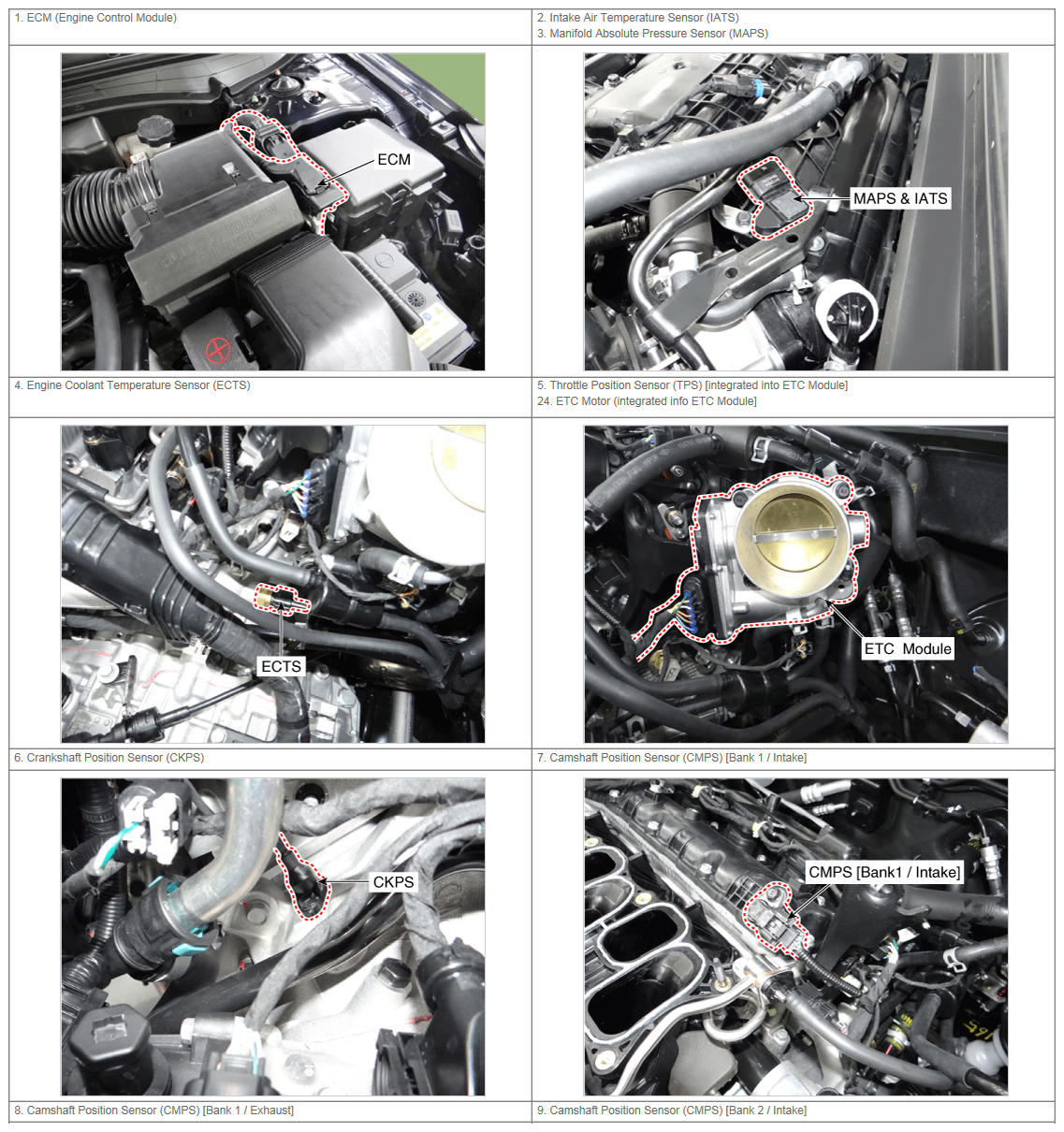

Fig 2: Engine Control System Components Location (2 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Engine Control System Components Location (3 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Engine Control System Components Location (4 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

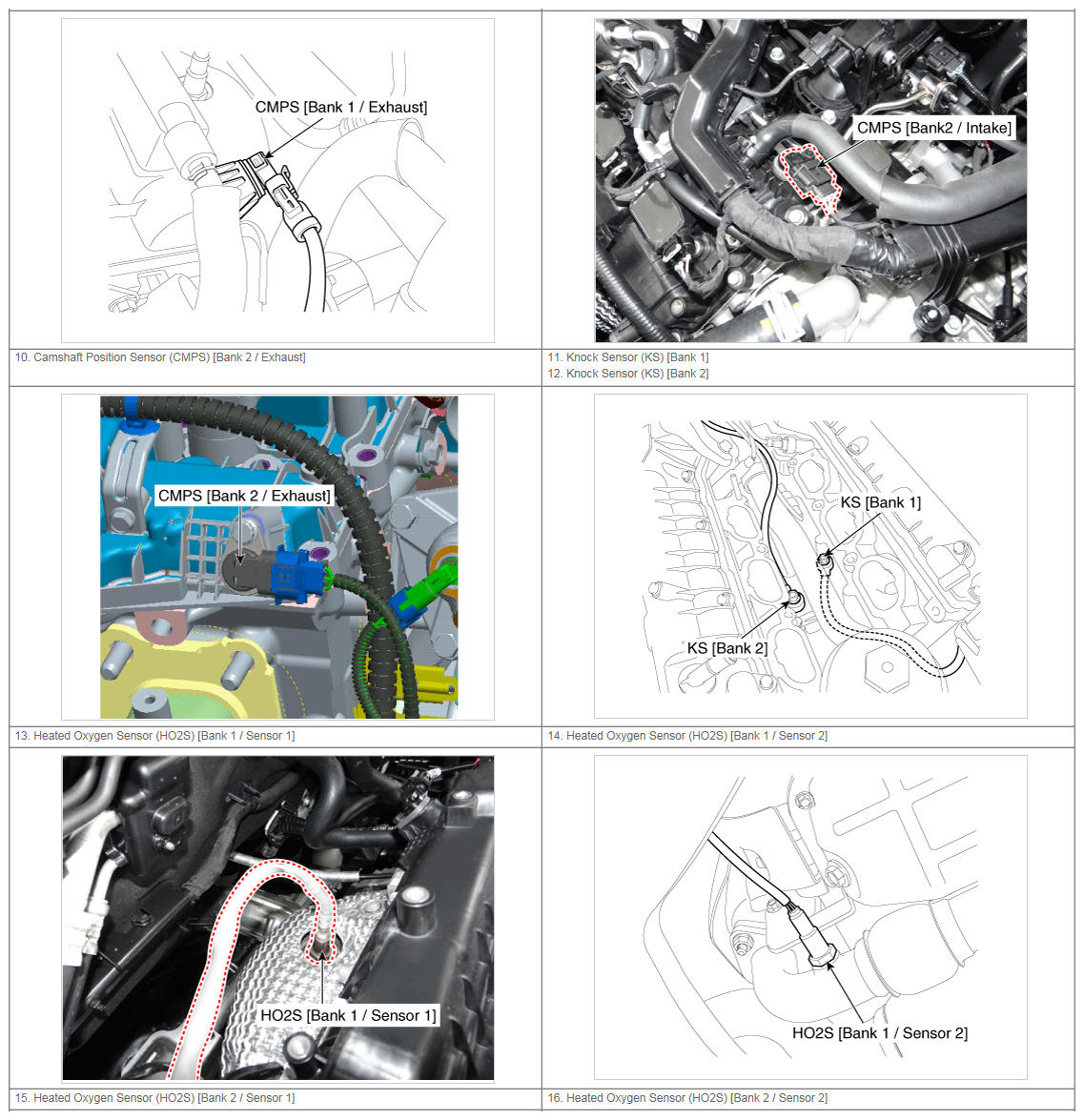

Fig 5: Engine Control System Components Location (5 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

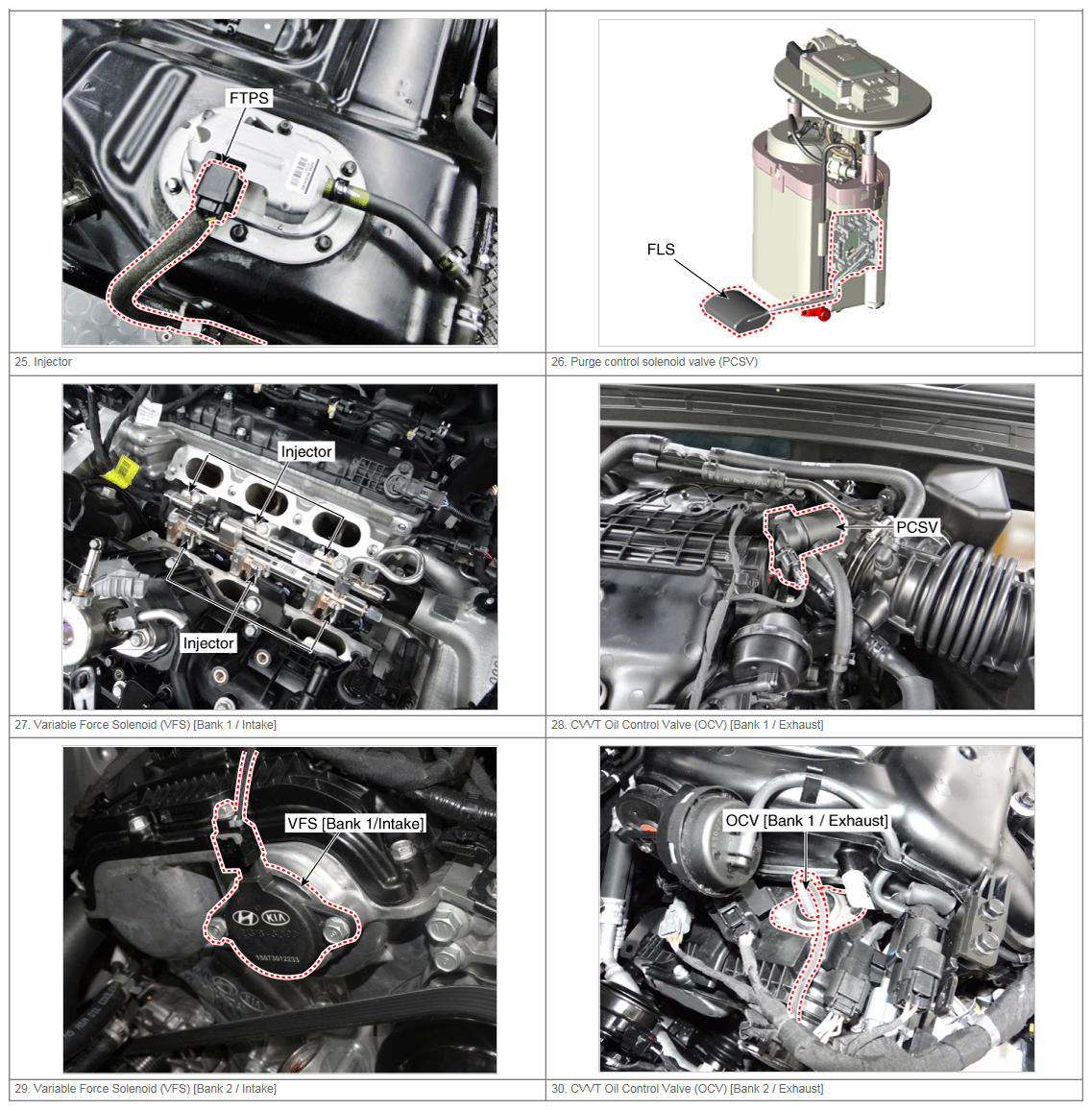

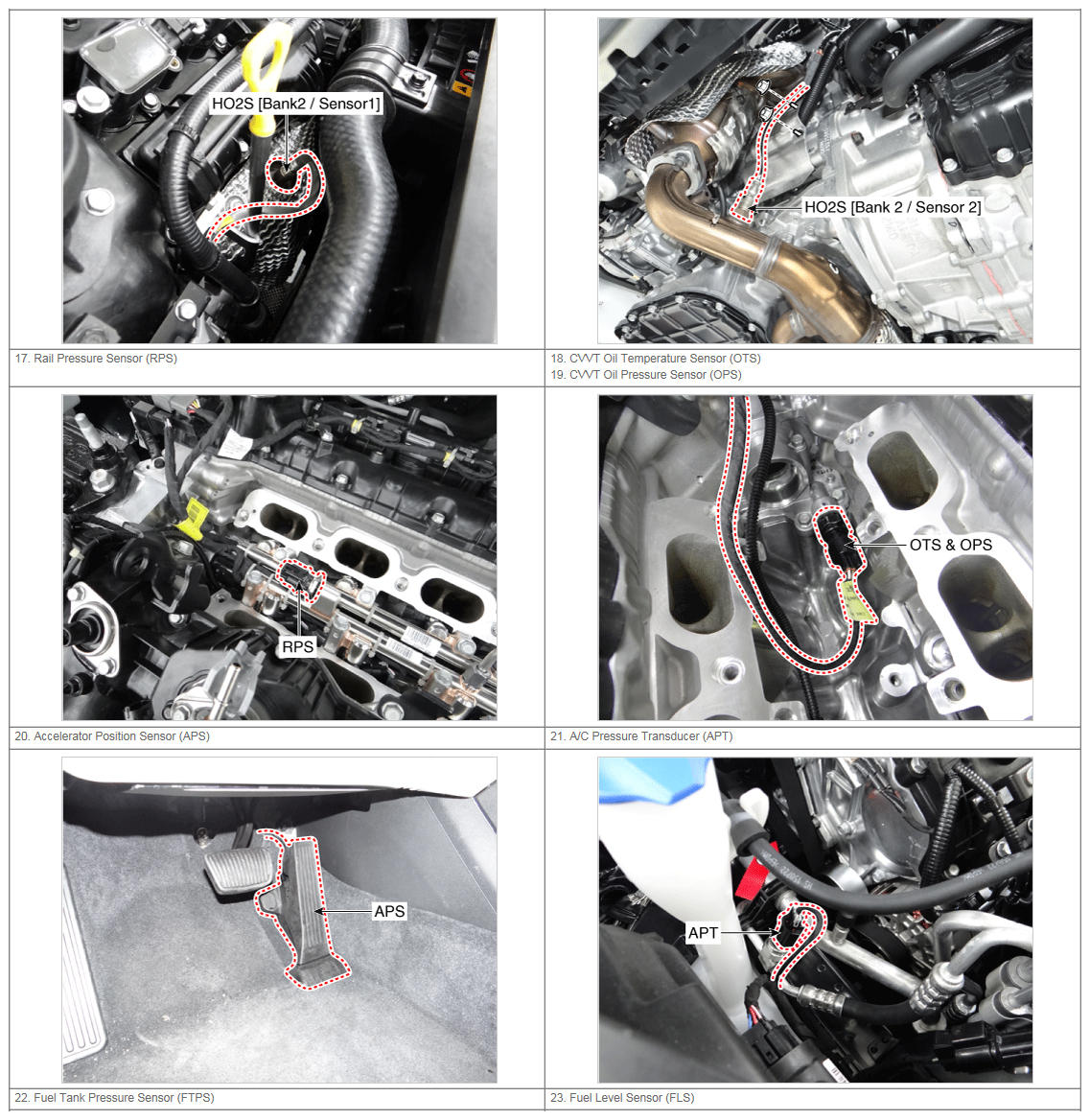

Fig 6: Engine Control System Components Location (6 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

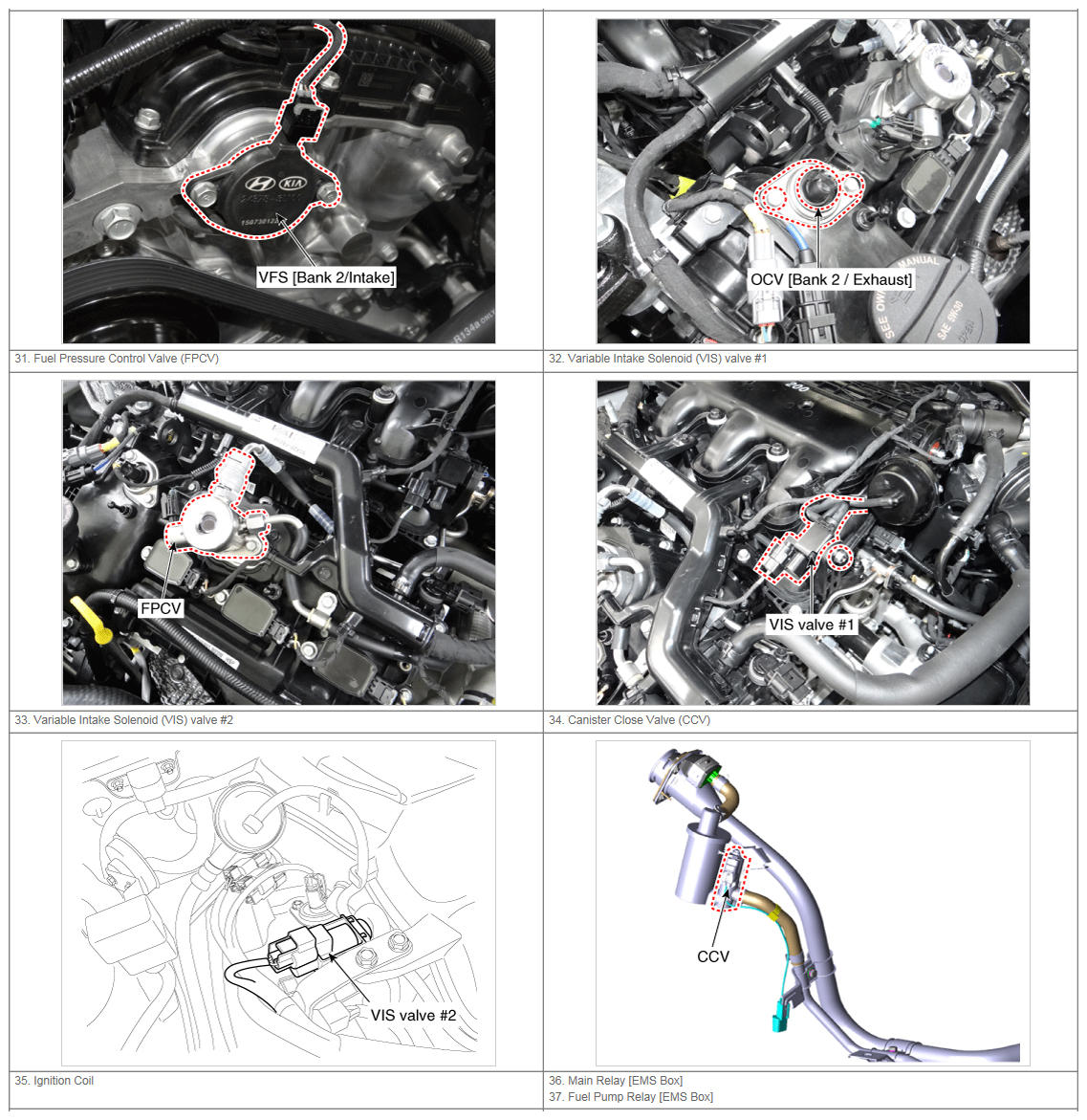

Fig 7: Engine Control System Components Location (7 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

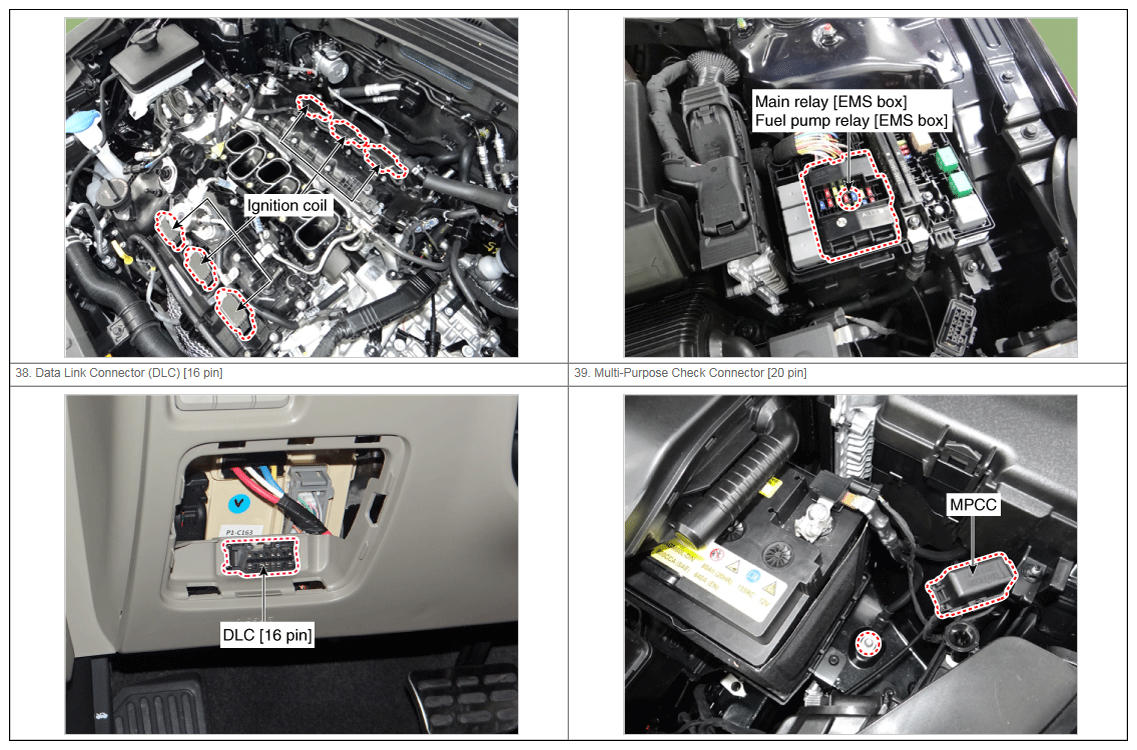

Fig 8: Engine Control System Components Location (8 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.
