Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the crankshaft position sensor connector (A).

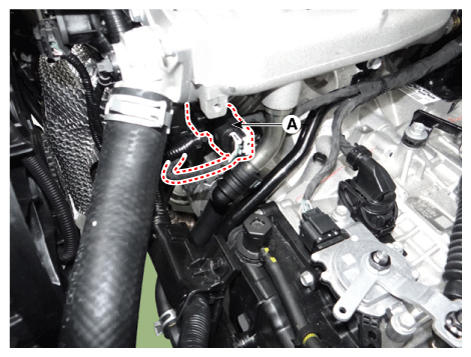

    Fig 1: Disconnecting Crankshaft Position Sensor Connector
    G12290701Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the mounting bolt (B), and then verticallly remove the sensor from the transaxle housing.

    Crankshaft Position Sensor mounting bolt  :

    6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft)

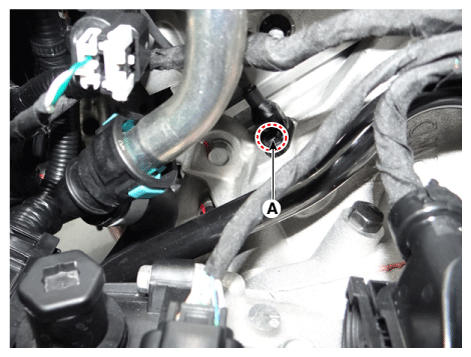

Fig 2: Removing Crankshaft Position Sensor Mounting Bolt
G12290702Courtesy of KIA MOTORS AMERICA, INC.
