Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the engine hanger (A) after loosening the mounting bolt.

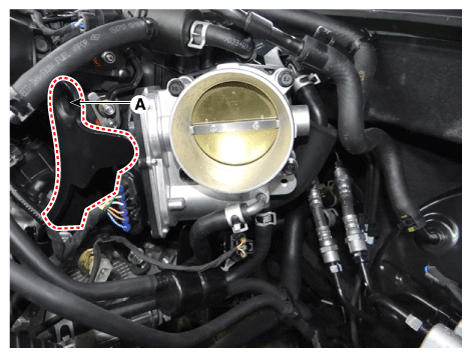

    Fig 1: Removing Engine Hanger Mounting Bolt
    G12290680Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ETC Module connector (A).
  5. Disconnect the coolant hoses (B).
  6. Remove the ETC module (D) after loosening the mounting bolts (C).

    Electronic throttle body mounting bolt  :

    14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb.ft)

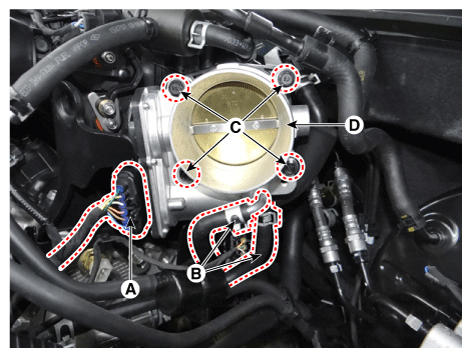

Fig 2: Disconnecting ETC Module Connector
G12290681Courtesy of KIA MOTORS AMERICA, INC.
