VIN programming procedure

VIN (Vehicle Identification Number) is a number with the vehicle information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to IDENTIFICATION NUMBERS . When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) will be set.

CAUTION: VIN cannot be changed once it is programmed. Confirm carefully when writing the VIN.

Select "VIN Writing" function in "Vehicle S/W Management".
Select "Write VIN" in "ID Register" menu.

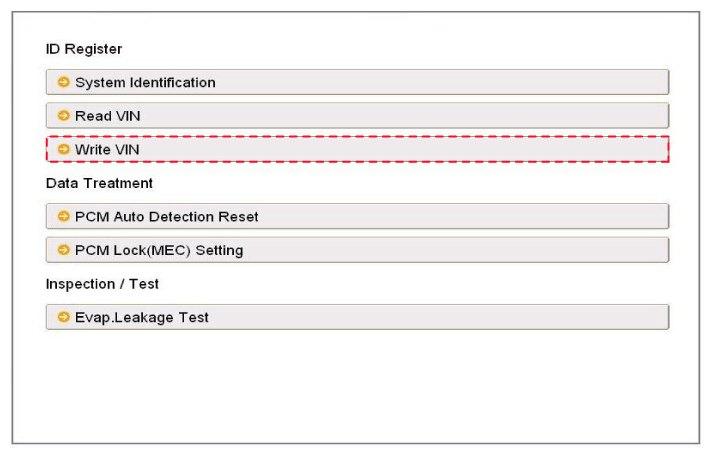

Fig 1: Screen Display - Write VIN In ID Register
Courtesy of KIA MOTORS AMERICA, INC.
Enter the VIN.
CAUTION: Before entering the VIN, confirm again as it cannot be changed once programmed.

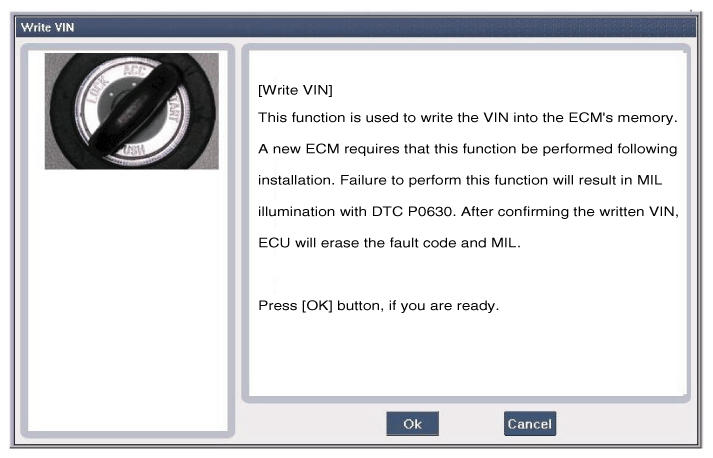

Fig 2: Screen Display - Write VIN
Courtesy of KIA MOTORS AMERICA, INC.
