Fuel Tank Pressure Sensor (FTPS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: Notes

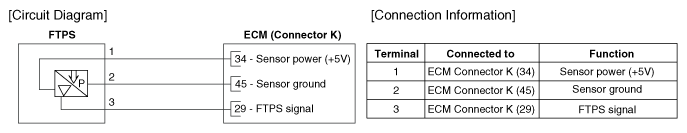

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
