Circuit Diagram

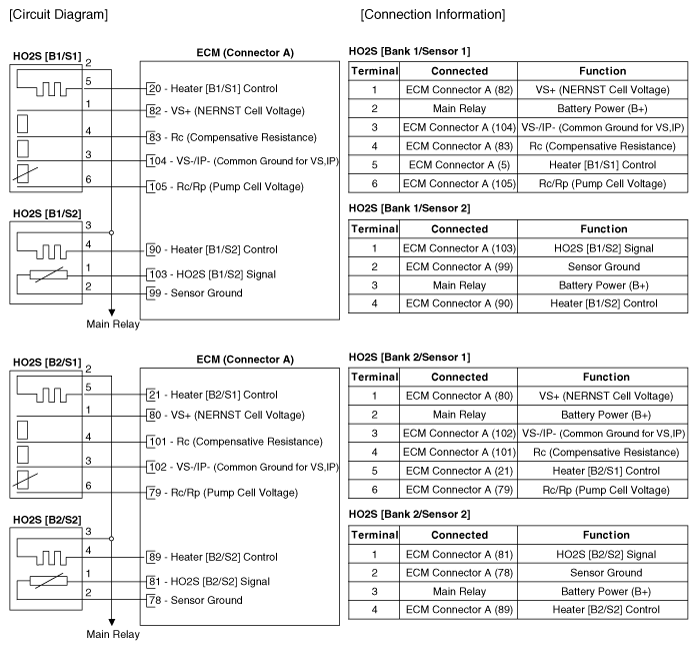

Fig 1: Heated Oxygen Sensor Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
