Repair procedures: Installation

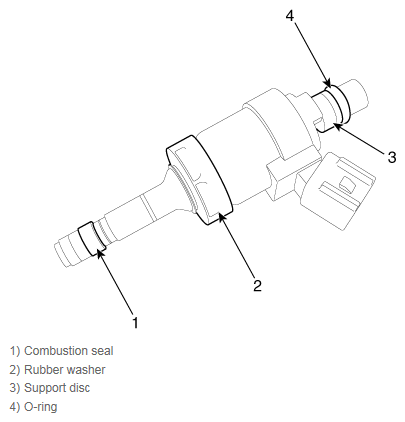

Fig 1: Combustion Seal, Rubber Washer, Support Disc And O-Ring
G12290759Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
  • Do not reuse the injector fixing clip.
CAUTION:
  • Install the component to the specified torque.
  • Note that internal damage may occur if the component is dropped. In this case, inspect the component before installation.
CAUTION:
  • Apply engine oil to the injector O-ring.
  • Do not reuse the injector O-ring.
CAUTION:
  • Do not reuse the bolt.
CAUTION:
  • When inserting the injector, be careful not to damage the injector tip.
CAUTION:
  • Do not reuse the support disc.
  • Do not reuse the injector rubber washer.

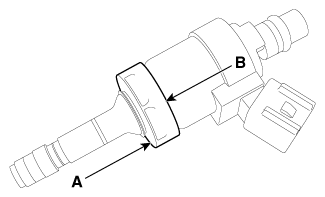

  • When replacing the rubber washer, the rounded edge (A) should face the cylinder installation area and the angulated edge (B) should face the injector body.
Fig 2: Locating Angulated Edge Should Face Injector Body
G12290760Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
  • Do not reuse the combustion seal.
  1. Install in the reverse order of removal.
