Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

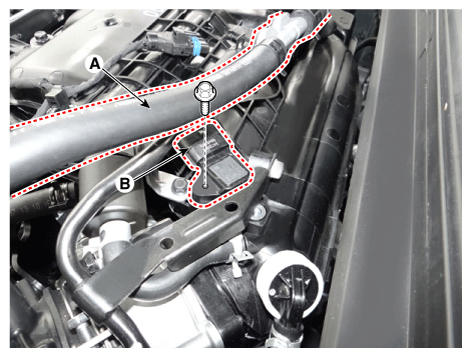

- Disconnect the vacumm hose (A).
- Disconnect the intake temperature sensor connector (B).
- Remove the sensor after loosening the mounting bolt.
Intake Air Temperature Sensor (IATS) mounting bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
