Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the vacumm hose (A).
  3. Disconnect the manifold absolute pressure sensor connector (B).
  4. Remove the sensor after loosening the mounting bolt.

    Manifold Absolute Pressure Sensor (MAPS) mounting bolt  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

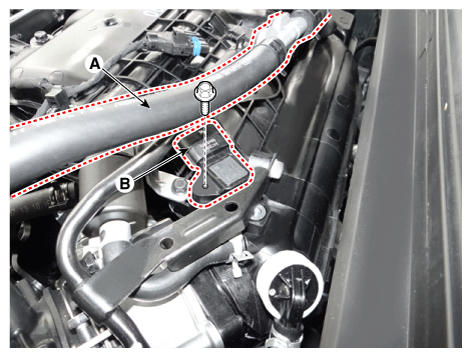

Fig 1: Disconnecting Manifold Absolute Pressure Sensor Connector
G12290692Courtesy of KIA MOTORS AMERICA, INC.
