Circuit Diagram: Notes

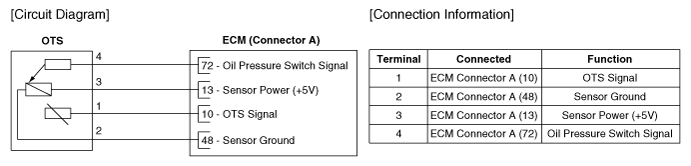

Fig 1: Oil Temperature Sensor Circuit Diagram And Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
