Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve from the bracket.

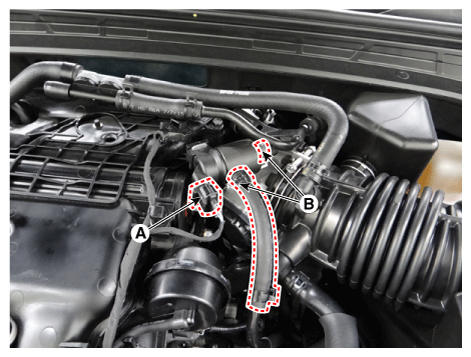

Fig 1: Disconnecting Purge Control Solenoid Valve Connector
G12290771Courtesy of KIA MOTORS AMERICA, INC.
