Connector Inspection Procedure

Handling of Connector
1. Turn on all electrical systems to simulate an excessive electrical load (Radios, fans, lights, rear window defogger, etc.).

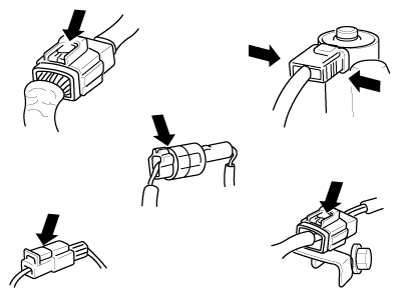

  Fig 1: Caution For Inspecting Connector
  Courtesy of KIA MOTORS AMERICA, INC.

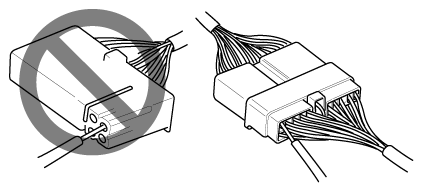

2. When removing the connector with a latch, press or pull locking lever.

  Fig 2: Pulling Locking Lever
  Courtesy of KIA MOTORS AMERICA, INC.

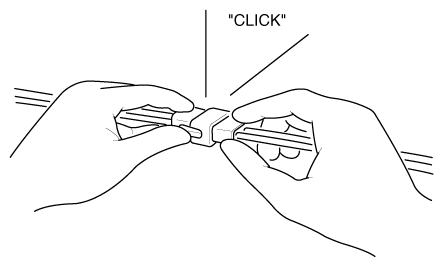

3. Listen for a click when locking connectors. This sound indicates that they are securely locked.

  Fig 3: Listening For Click Locking Connectors
  Courtesy of KIA MOTORS AMERICA, INC.

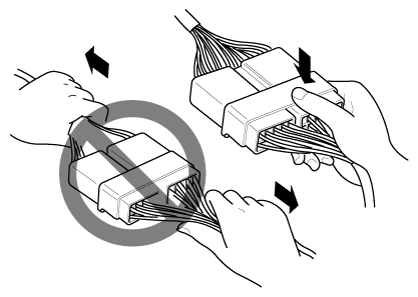

4. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

  Fig 4: Inserting Tester Probe From Wire Harness Side
  Courtesy of KIA MOTORS AMERICA, INC.

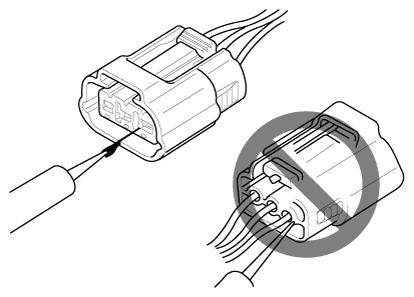

5. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.

  Fig 5: Checking Waterproof Connector Terminals From Connector Side
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  - Use a fine wire to prevent damaging the terminal.
  - Do not damage the terminal when inserting the tester lead.
Checking Point for Connector
1. While the connector is connected:
  Hold the connector, and check connecting condition and locking efficiency.
2. When the connector is disconnected:
  Check for missing terminal, crimped terminal or broken core wire by lightly pulling the wire harness.

  Visually check for rust, contamination, deformation and bending.
3. Check terminal tightening condition:
  Insert a spare male terminal into a female terminal, and then check terminal tightening conditions.

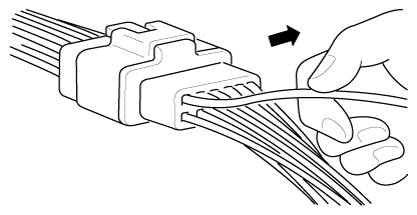

4. Pull lightly on individual wires to ensure that each wire is secured in the terminal.
Fig 6: Pulling Lightly On Individual Wires
Courtesy of KIA MOTORS AMERICA, INC.
Connector Terminal Repairing Method
1. Clean the contact points using air gun and/or shop rag.
  NOTE: Never use sand paper when polishing the contact points, otherwise the contact point may be damaged.
2. In case of abnormal contact pressure, replace the female terminal.
