Repair Procedures: Removal

Open the fuel filler door.
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

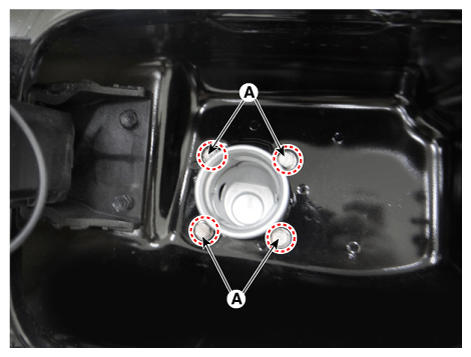

Remove the filler-neck mounting bolt (A).

Fig 1: Locating Filler-Neck With Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.

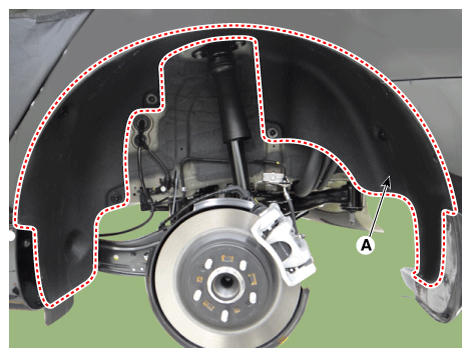

Remove the rear-LH wheel, tire, and the inner wheel house (A).

Fig 2: Locating Rear-LH Wheel, Tire & Inner Wheel House
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel filler hose (A).

Fig 3: Locating Fuel Filler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor hose (A).

Fig 4: Locating Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear sub frame.
(Refer to Suspension System - "REAR SUB FRAME ")
Remove the filler-neck assembly after loosening the mounting bolt (A).

Fig 5: Locating Filler-Neck Assembly Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
