Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

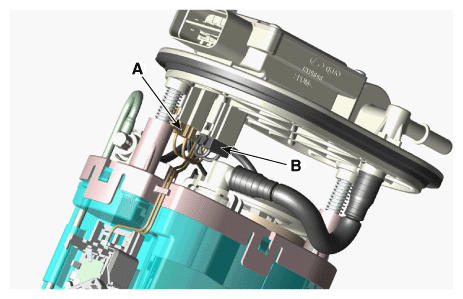

Remove the fuel pump motor connector (A) and fuel sender connector (B).

Fig 1: Removing Locating Fuel Pump Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

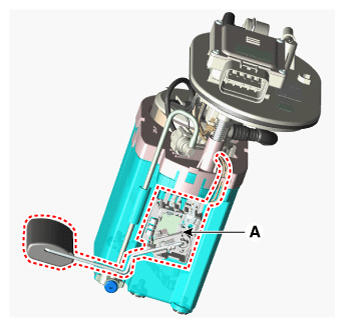

Lift the fixing hook by using a common driver, and then remove the fuel sender (A).

Fig 2: Locating Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.

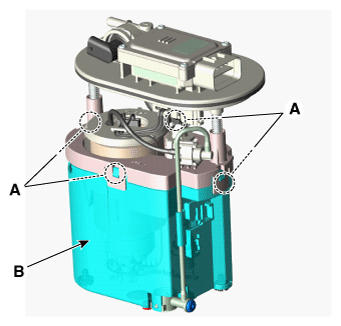

Remove the reservoir cup (B) after releasing the fixing hooks (A).

Fig 3: Locating Reservoir Cup Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

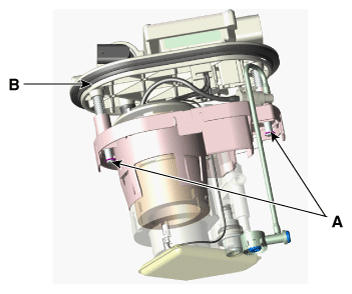

Remove the head assembly (B) after releasing the fixing hooks (A).

Fig 4: Locating Head Assembly Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

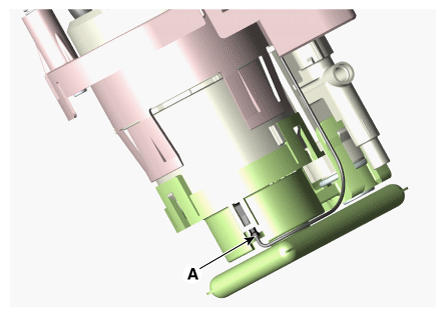

Disconnect the ground cable (A).

Fig 5: Locating Ground Cable
Courtesy of KIA MOTORS AMERICA, INC.

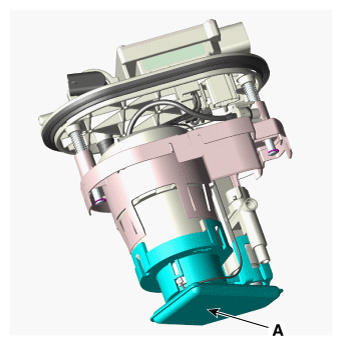

Remove the free-filter (A) after releasing the fixing hooks.

Fig 6: Locating Free-Filter Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (A) from the fuel filter (B).

Fig 7: Removing Locating Fuel Pressure Regulator & Fuel Filter
Courtesy of KIA MOTORS AMERICA, INC.
