Repair Procedures: Removal

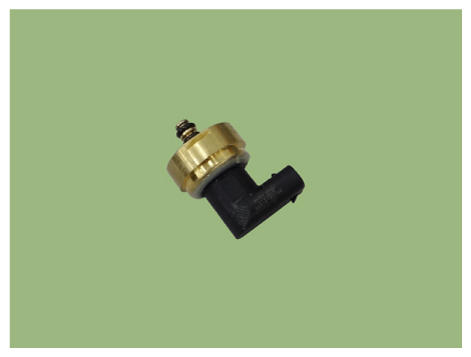

Fig 1: Identifying Fuel Pressure Sensor

Courtesy of KIA MOTORS AMERICA, INC.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

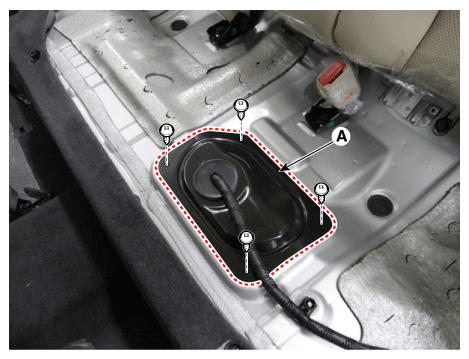

Fig 2: Locating Fuel Pump Service Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pressure sensor connector (A).
Remove the fuel pressure sensor fixing pin (B).
Remove the fuel pressure sensor from the fuel pump.

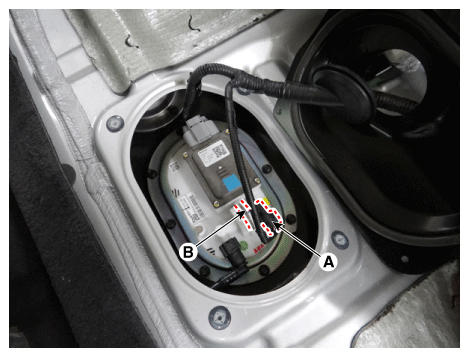

Fig 3: Locating Fuel Pressure Sensor Fixing Pin
Courtesy of KIA MOTORS AMERICA, INC.
