Fuel Delivery System
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

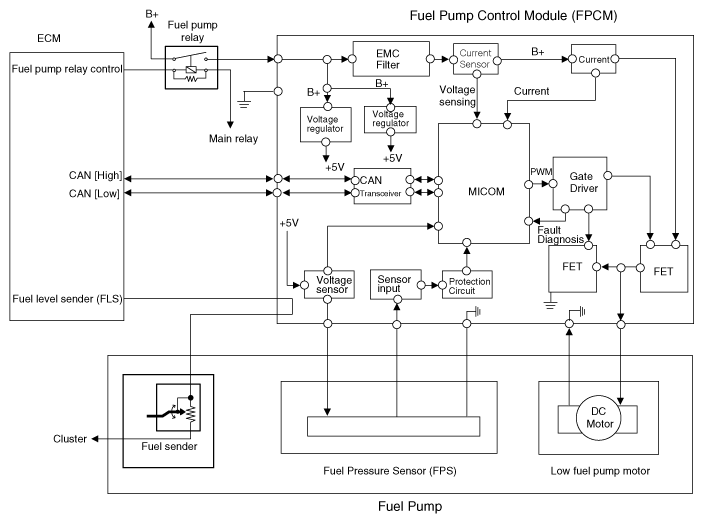

Fig 1: Fuel Pump Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
