Charging System: Battery

Information

• Model type description

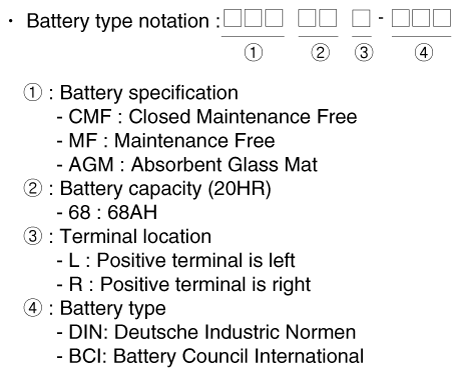

  Fig 1: Battery Model Type Description

  Courtesy of KIA MOTORS AMERICA, INC.
• Cold Cranking Ampere (CCA): A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
  • The maximum current that a fully charged battery can deliver at -18 °C (-0.4 °F) for 30 seconds while maintaining a voltage of at least 7.2 volts for a 12-volt battery.
  • The higher the CCA rating, the greater the starting power of the battery.
• RESERVE CAPACITY (RC): A battery industry rating that defines the battery's ability to power a vehicle with an inoperative alternator or fan belt.
  • The rating is the number of minutes a battery at 26.7 °C (80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
  • The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

Information

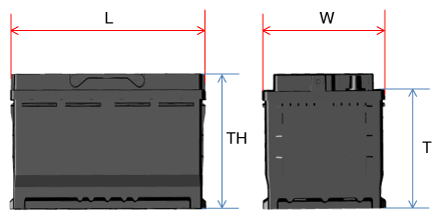

Fig 2: Checking Battery Total Height

Courtesy of KIA MOTORS AMERICA, INC.

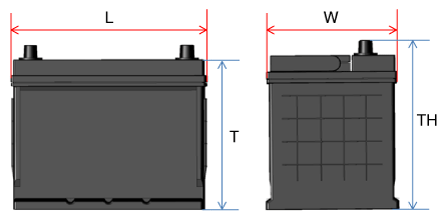

Fig 3: Checking Battery Total Height

Courtesy of KIA MOTORS AMERICA, INC.
