Position Switch: Troubleshooting

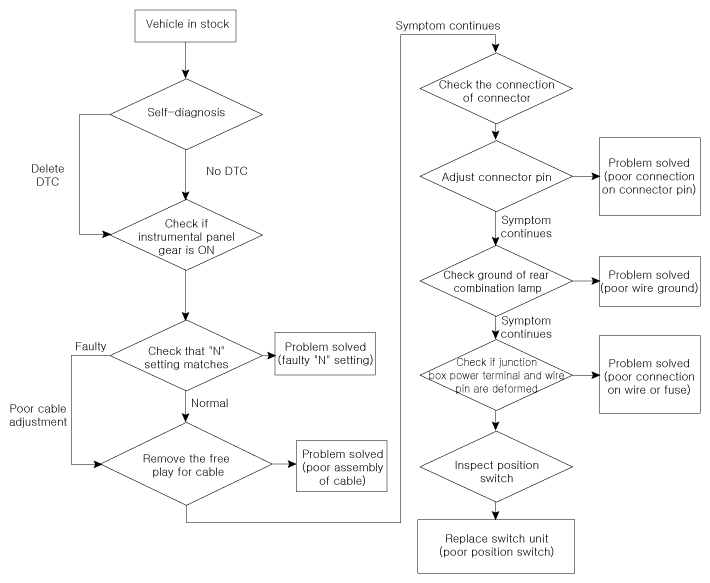

Fig 1: DTC Troubleshooting Flowchart

G12293734

Courtesy of KIA MOTORS AMERICA, INC.
