Repair Procedures: Removal

Shift the gear to "N".
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY REMOVAL ")

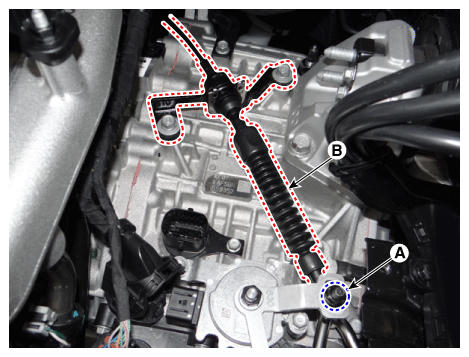

Remove the shift cable (B) from the bracket after loosening a nut (A).

Fig 1: Locating Shift Cable & Bracket Nut
Courtesy of KIA MOTORS AMERICA, INC.

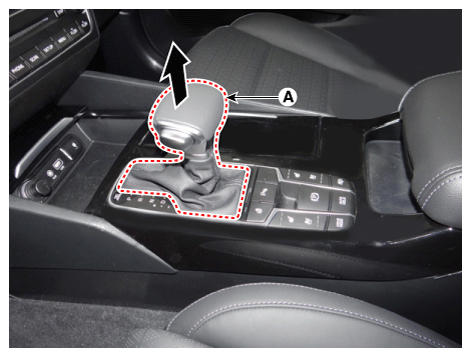

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Fig 2: Remove Knob & Boot
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

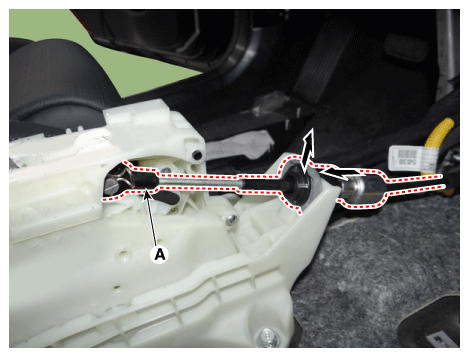

Remove the shift cable (A) after separating the snap pin.

Fig 3: Locating Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SRS Control Module (SRSCM).
(Refer to Restraint - "SRS CONTROL MODULE ")

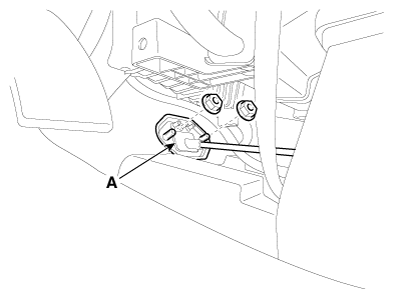

Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.

Fig 4: Locating Shift Cable Retainer With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
