Components And Components Location: Components

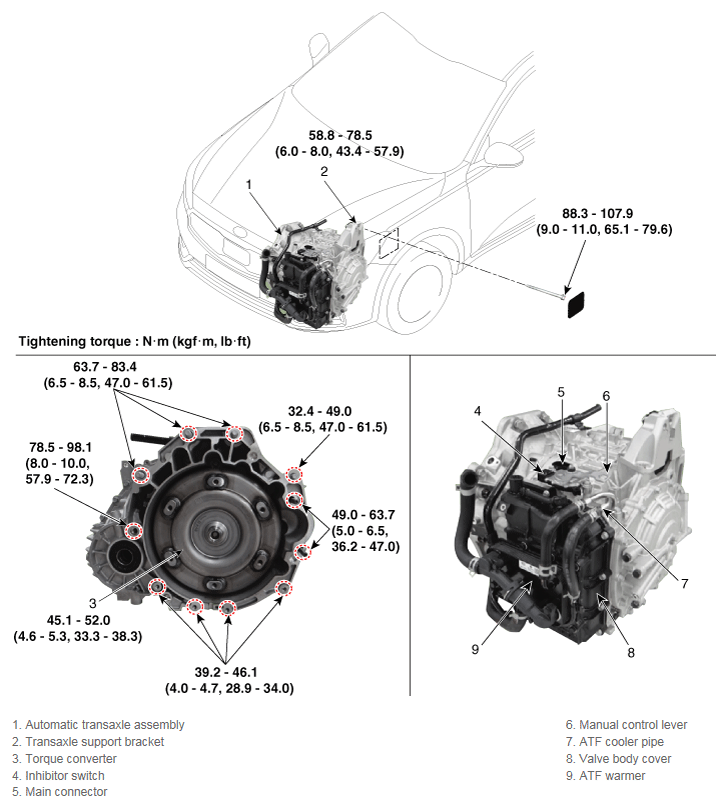

Fig 1: Automatic Transaxle System Components Location With Torque Specification
G12293768Courtesy of KIA MOTORS AMERICA, INC.
