Removal And Installation

  1. Remove the engine cover (A).

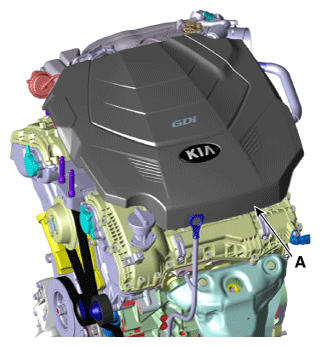

    Fig 1: Locating Engine Cover
    G12290239Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Lift up the lower end of engine cover, then left and right alternately.
    • When installing, check that the mounting rubber insulators are installed.
  2. Install in the reverse order of removal.
