Engine Mounting Bracket

Disconnect the negative battery terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of the lower oil pan to support the engine.

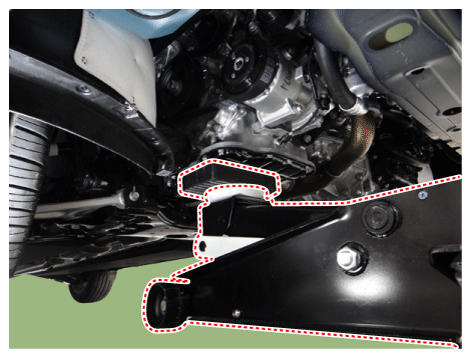

Fig 1: Install Jack To Edge Of Lower Oil Pan To Support Engine
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert a rubber block between jack and upper oil pan.

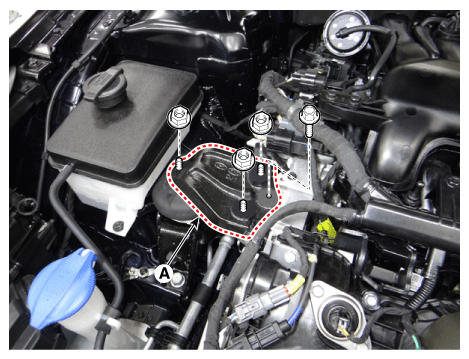

Remove the engine mounting support bracket (A).
Tightening torque 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Fig 2: Locating Engine Mounting Support Bracket With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Separate the reservoir tank to allow space for removing the engine mounting bracket.
(Refer to Cooling System - "RESERVOIR TANK ")
Remove the engine mounting bracket (A).
Tightening torque :

68.6 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb.ft)

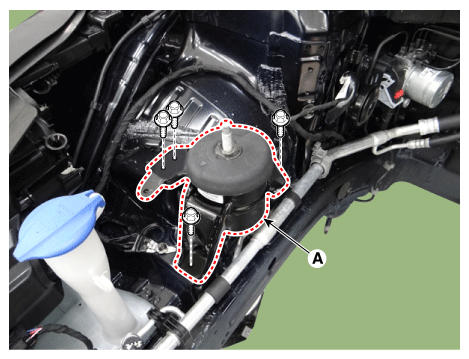

Fig 3: Locating Engine Mounting Bracket With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
Note the items below when repairing the engine mounting bracket or engine mounting support bracket.
- Always use new nut (A).
- Replace the engine mounting bracket bolt (B) with new one or reuse after applying the adhesive (3M 2325) on the (C) as follows.
- When installing the engine mounting support bracket:
  - Remove the hardened adhesive around the engine mounting bracket stud (D).
  - Reapply the adhesive (ND MICROSPHERES 1193S) on the engine mounting bracket stud (D) as show below.

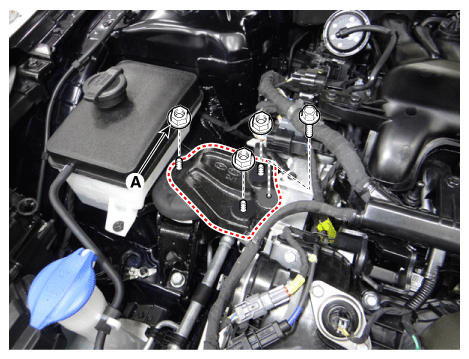

  Fig 4: Locating Engine Mounting Bracket With Nut
  Courtesy of KIA MOTORS AMERICA, INC.

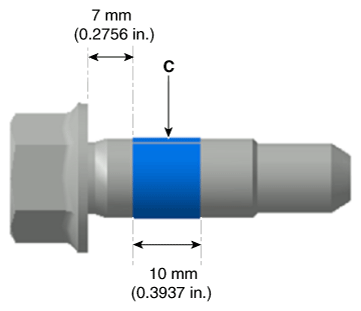

  Fig 5: Locating Engine Mounting Bracket Bolt
  Courtesy of KIA MOTORS AMERICA, INC.

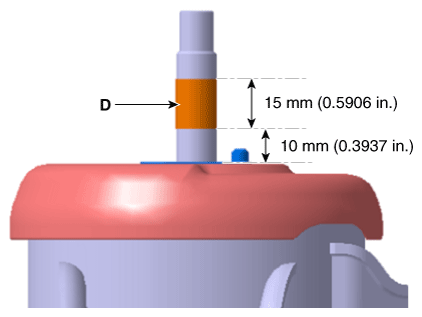

  Fig 6: Check Engine Mounting Bracket Stud (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 7: Check Engine Mounting Bracket Stud (2 Of 2)
