Engine Room Front Under Cover

  1. Remove the engine room front under cover (A).

    Tightening torque  :

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

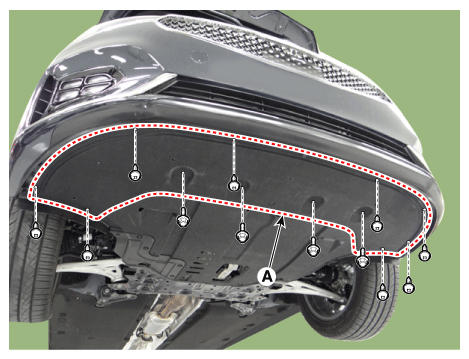

    Fig 1: Locating Engine Room Front Under Cover
    G12290240Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
