Transmission Control Systems
>>
Automatic Transaxle Control System
>>
Oil Temperature Sensor (Main Harness)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

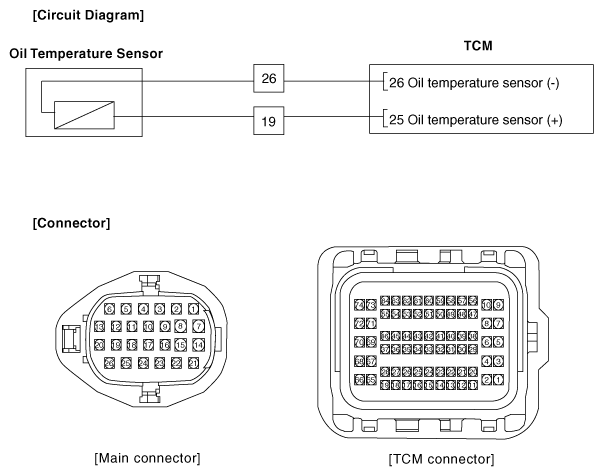

Fig 1: Oil Temperature Sensor Circuit Diagram With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
