Repair Procedures: Installation

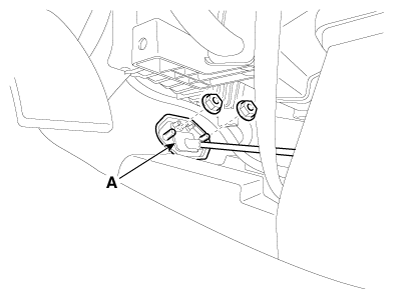

Install the shift cable retainer (A).
Tightening torque :

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 1: Locating Shift Cable Retainer With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the SRS Control Module (SRSCM).
(Refer to Restraint - "SRS CONTROL MODULE ")

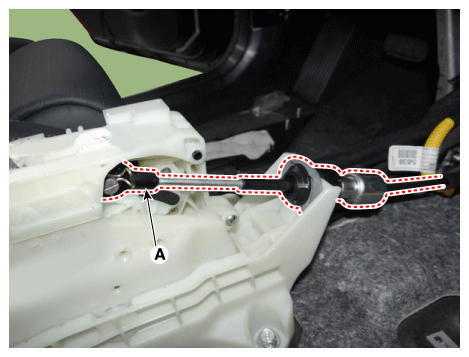

Insert the snap pin after installing the shift cable (A).

Fig 2: Locating Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Install the shift cable after checking the direction of projection to prevent incorrect assembly.

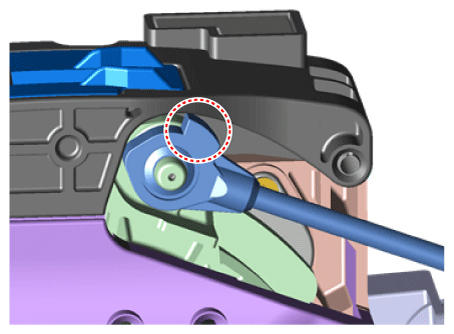

  Fig 3: Install Shift Cable
  Courtesy of KIA MOTORS AMERICA, INC.

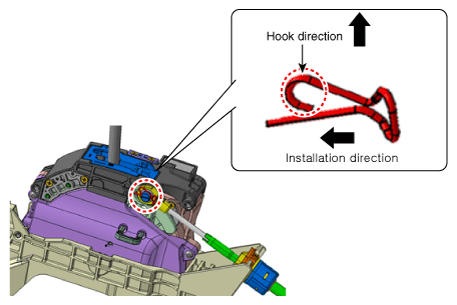

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

  Fig 4: Install Snap Pin With Hook Facing Upward
  Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

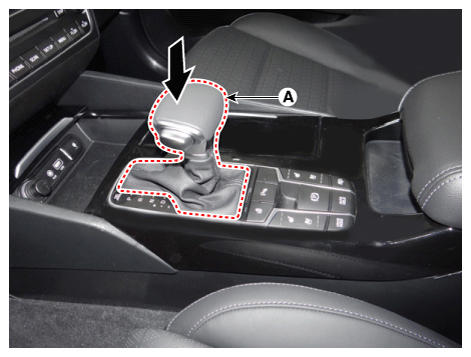

Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

Fig 5: Locating Knob
Courtesy of KIA MOTORS AMERICA, INC.
Check that the shift lever and manual control lever are placed in the "N" position.

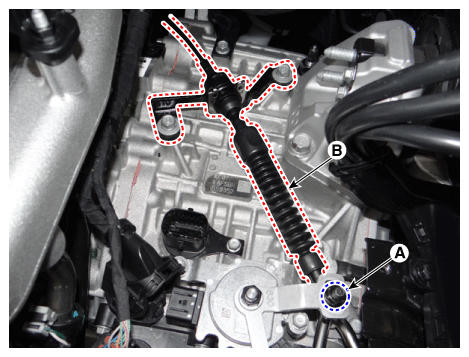

Install the shift cable (B) to bracket and then lightly tighten the nut (A).

Fig 6: Install Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)

Fig 7: Locating Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

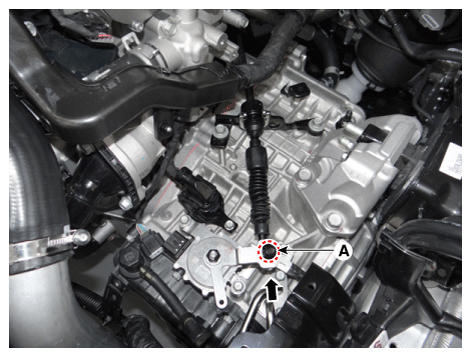

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque :

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 8: Push Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY REMOVAL ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
