Repair Procedures: Removal

Shift the gear to "N".

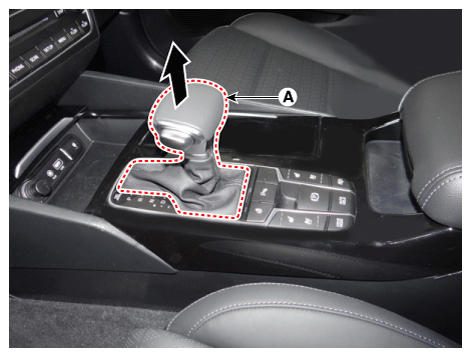

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Fig 1: Remove Knob & Boot
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

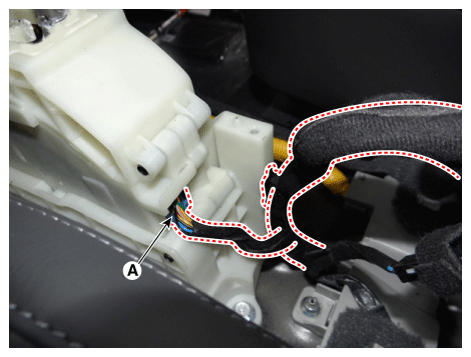

Disconnect the main connector (A) and then remove the wiring fixing clip from the shift lever.

Fig 2: Locating Main Connector
Courtesy of KIA MOTORS AMERICA, INC.

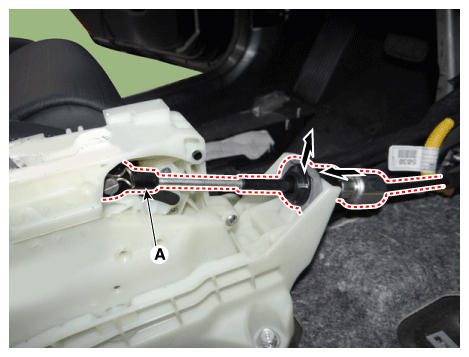

Remove the shift cable (A) after separating the snap pin.

Fig 3: Locating Shift Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

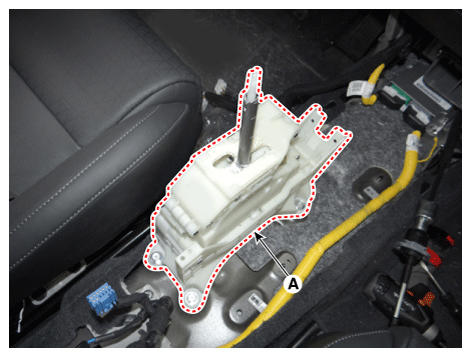

Remove the shift lever assembly (A).
Tightening torque :

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 4: Locating Shift Lever Assembly With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
