Trunk Lid Open Switch

  1. Check for continuity between teh trunk lid open switch terminal.

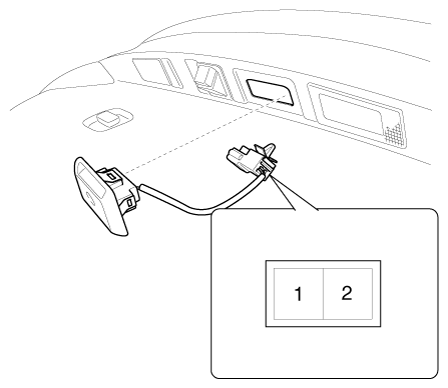

    Fig 1: Trunk Lid Open Switch Connector Terminals
    G12164620Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not specified, inspect the switch.

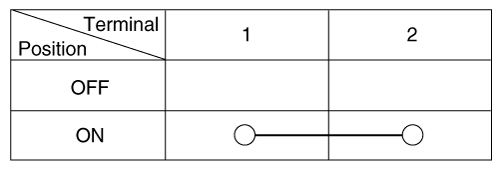

Fig 2: Trunk Lid Open Switch Terminal Continuity Chart
G12164621Courtesy of KIA MOTORS AMERICA, INC.
