Interior Antenna

NOTE: Take care not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Disconnect the connector, then remove the interior antenna (A) with loosening 2 nuts.

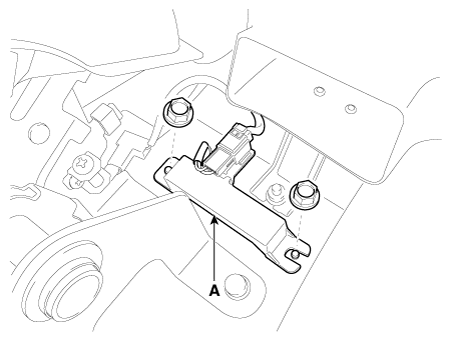

Fig 1: Interior Antenna With Nuts
G12164626Courtesy of KIA MOTORS AMERICA, INC.
