Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

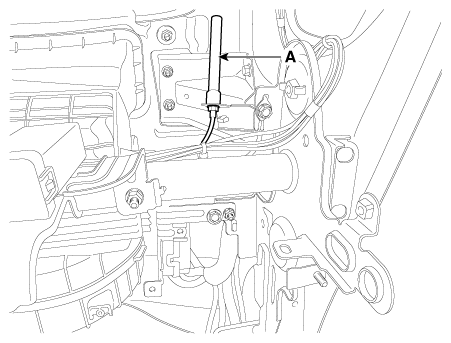

Remove the RF receiver (A) after loosening a nut.

Fig 1: RF Receiver With Nut
Courtesy of KIA MOTORS AMERICA, INC.

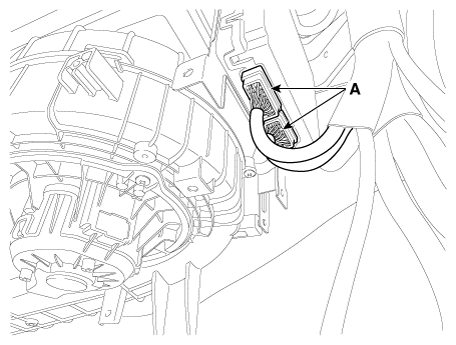

Disconnect the SMK connectors (A) from the SMK unit.

Fig 2: SMK Connectors
Courtesy of KIA MOTORS AMERICA, INC.

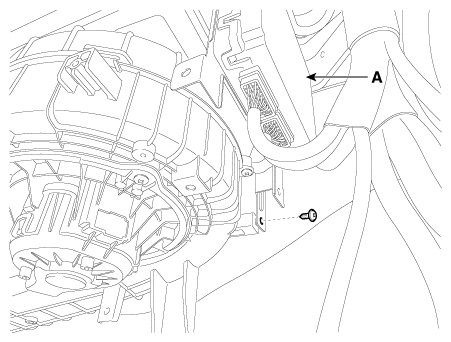

Remove the smart key unit (A) with loosening the nut and screw.

Fig 3: Smart Key Unit With Screw

Courtesy of KIA MOTORS AMERICA, INC.

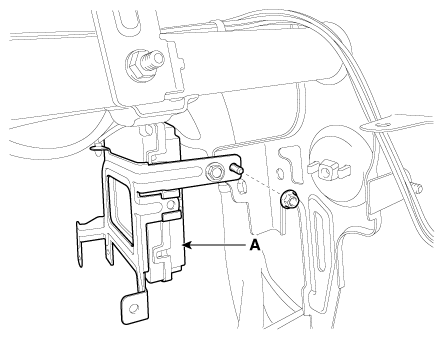

Fig 4: Smart Key Unit With Nut

Courtesy of KIA MOTORS AMERICA, INC.
