Smart Key Code Saving

Connect the DLC cable of KDS/GDS to the data link connector in driver side crash pad lower panel, turn the power on KDS/GDS.

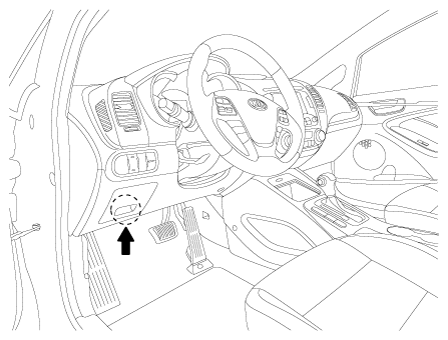

Fig 1: Data Link Connector In Driver Side Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

Fig 2: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

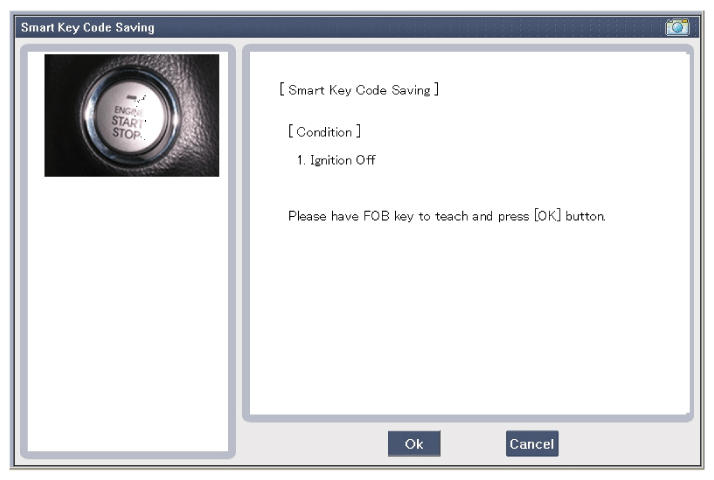

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

Fig 4: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

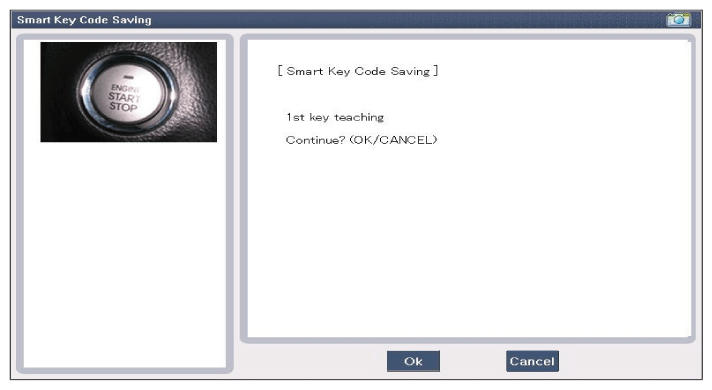

Fig 6: Scantool Display - Smart Key Code Saving (1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

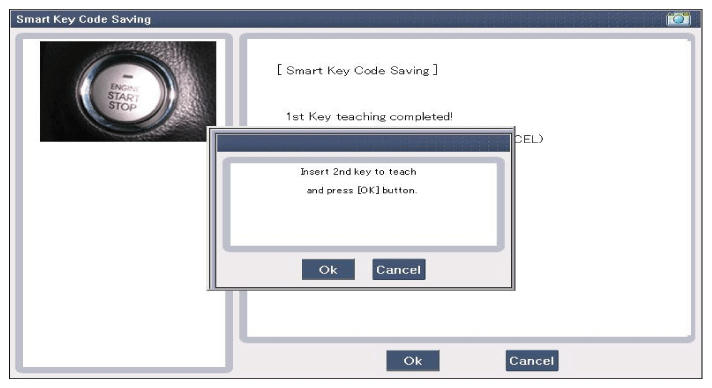

Fig 8: Scantool Display - Smart Key Code Saving (2nd Key Continue)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Scantool Display - Smart Key Code Saving (Message)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

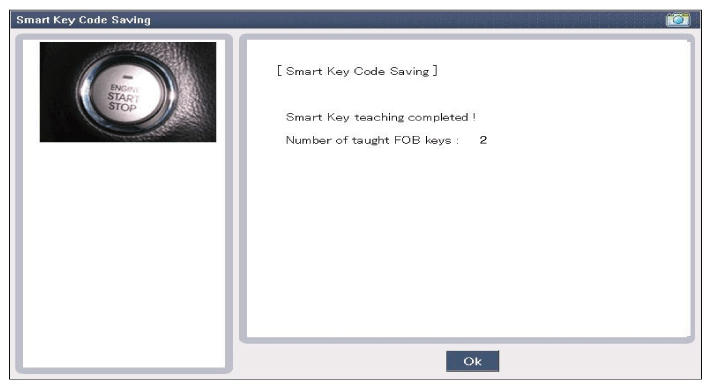

Fig 10: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as above when key teaching process is completed.
