Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
(Refer to Body - "FRONT DOOR TRIM ")
Disconnect the connector from the switch.

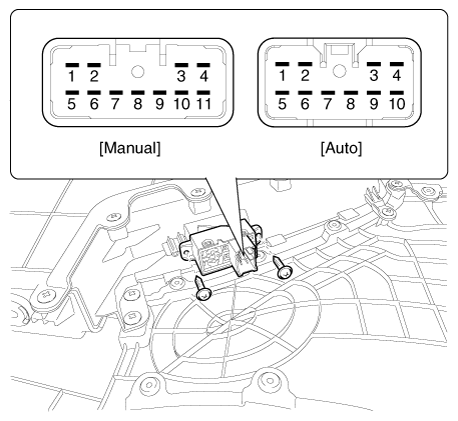

Fig 1: Passenger Power Window Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[Auto]

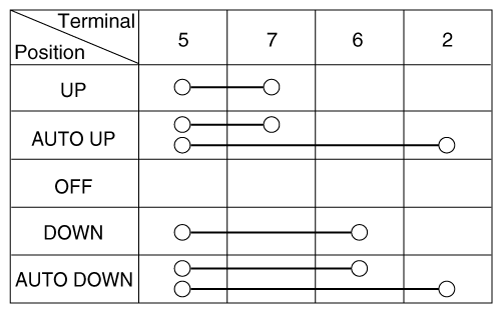

Fig 2: Passenger Power Window Switch Connector Terminals Continuity Chart (Auto)
Courtesy of KIA MOTORS AMERICA, INC.

[Manual]

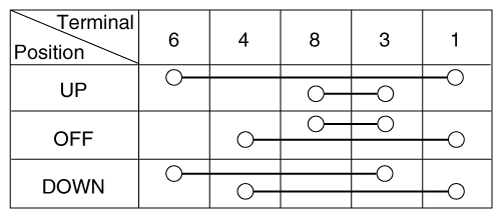

Fig 3: Passenger Power Window Switch Connector Terminals Continuity Chart (Manual)
Courtesy of KIA MOTORS AMERICA, INC.

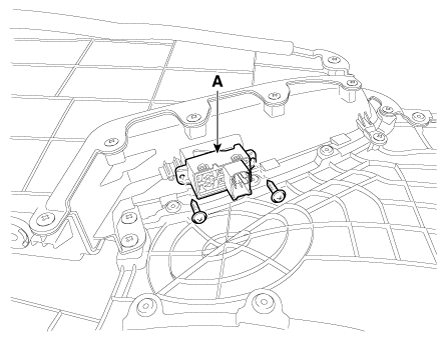

Remove the power window switch (A) after loosening the screws.

Fig 4: Removing Power Window Switch Screws

Courtesy of KIA MOTORS AMERICA, INC.
