Repair Procedures: Replacement: [Removal]

CAUTION:

Put on gloves to protect your hands.
When replacing a broken windshield glass, a commercially available windshield cutter can be efficiently used for cutting adhesive. For details, follow the instructions of the tool manufacturer.

NOTE:

Use seat covers to avoid damaging any surfaces.

Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the cowl top cover.
(Refer to COWL TOP COVER )
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the rain sensor.
(Refer to appropriate service information Body Electrical System - "Rain Sensor" if equipped)
Remove the auto defogging sensor.
(Refer to Heating, Ventilation And Air Conditioning - "AUTO DEFOGGING SENSOR ")
Disconnect the windshield glass defogger connector.
Cut out the adhesive using a cutter (A).
Information
- Please use a cutter with a blade length between 8-12 inches.

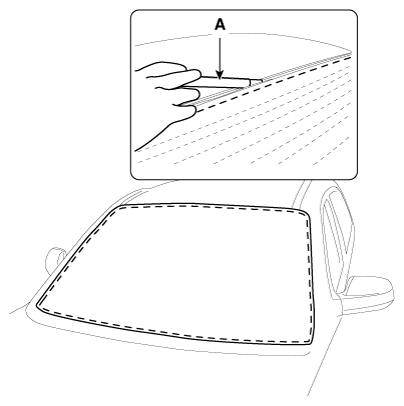

Fig 1: Cutting Out Adhesive Using Cutter
Courtesy of KIA MOTORS AMERICA, INC.

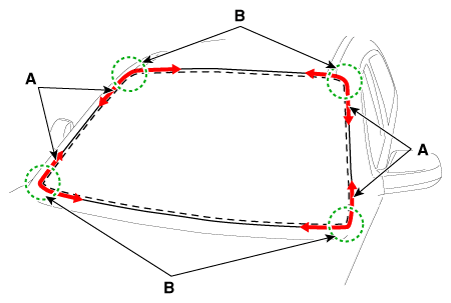

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 2: Cutting Off Sealant On Edge
Courtesy of KIA MOTORS AMERICA, INC.

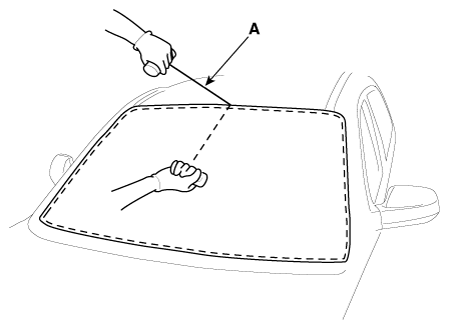

If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

Fig 3: Pulling Piano Wire
Courtesy of KIA MOTORS AMERICA, INC.

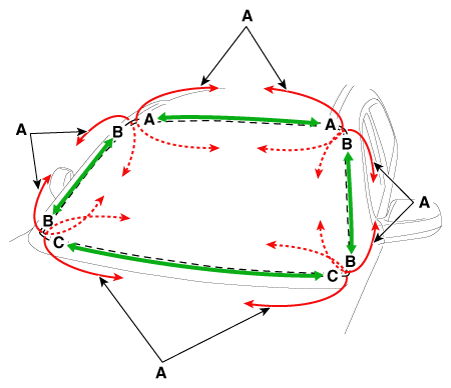

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 4: Cutting Sealant
Courtesy of KIA MOTORS AMERICA, INC.

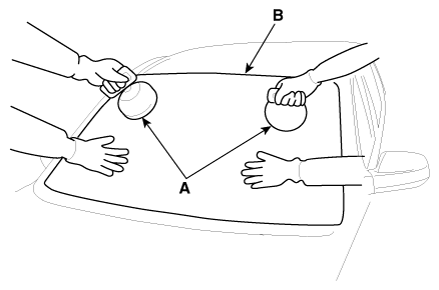

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 5: Removing Windshield Glass Using Glass Holder

Courtesy of KIA MOTORS AMERICA, INC.
