Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the crankshaft position sensor connector (A).
Crankshaft Position Sensor Mounting Bolt:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Fig 1: Disconnecting Crankshaft Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the crankshaft position sensor (B) after loosening the mounting bolt (A).

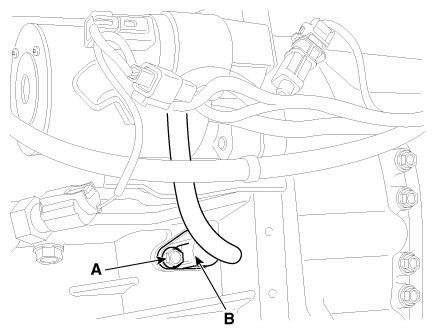

Fig 2: Removing Crankshaft Position Sensor Mounting Bolt

Courtesy of KIA MOTORS AMERICA, INC.
