Circuit Diagram: (M/T)

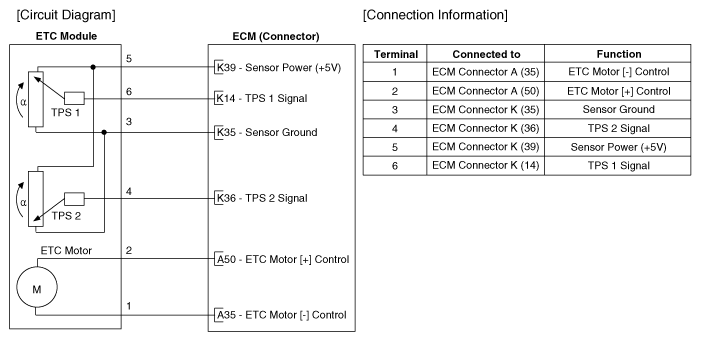

Fig 1: ETC Module Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
