Repair Procedures: Removal

[SULEV]

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A), and then remove the sensor (B).
   NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

   [Bank 1/Sensor 1]

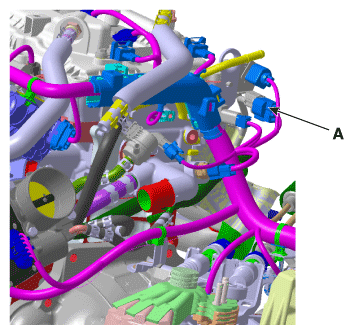

   Fig 1: Disconnecting Connector (Bank 1/Sensor 1)

   Courtesy of KIA MOTORS AMERICA, INC.

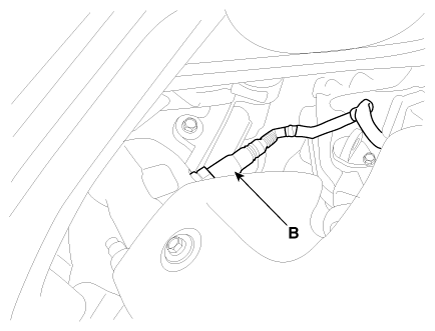

   Fig 2: Removing Sensor (Bank 1/Sensor 1)

   Courtesy of KIA MOTORS AMERICA, INC.

   [Bank 1/Sensor 2]

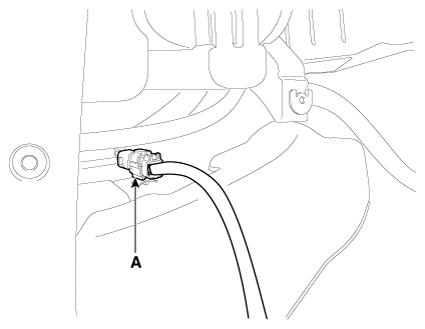

   Fig 3: Disconnecting Connector (Bank 1/Sensor 2)

   Courtesy of KIA MOTORS AMERICA, INC.

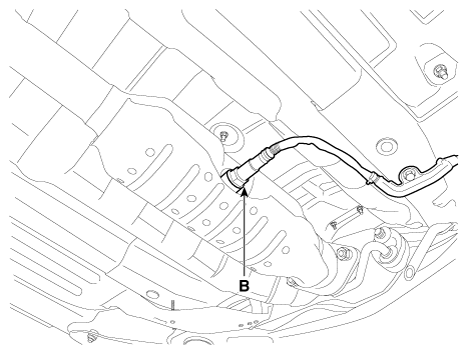

   Fig 4: Removing Sensor (Bank 1/Sensor 2)

   Courtesy of KIA MOTORS AMERICA, INC.

[LEV2]

[Bank 1/Sensor 1]

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A), and then remove the sensor (B).
   NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

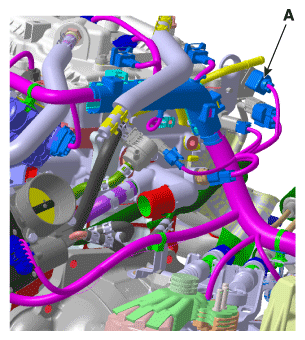

   Fig 5: Disconnecting Connector (Bank 1/Sensor 1)

   Courtesy of KIA MOTORS AMERICA, INC.

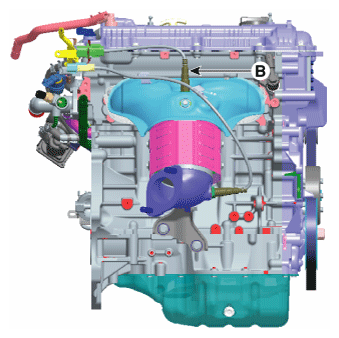

   Fig 6: Removing Sensor (Bank 1/Sensor 1)

   Courtesy of KIA MOTORS AMERICA, INC.

   [Bank 1/Sensor 2]

   1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
   2. Remove the console side cover (A).

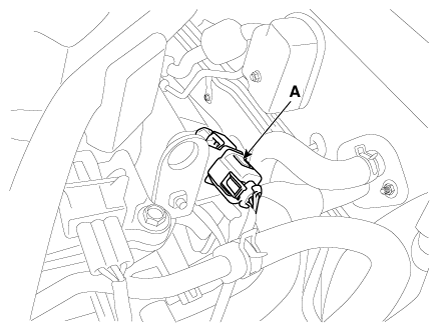

      Fig 7: Removing Console Side Cover (Bank 1/Sensor 2)

      Courtesy of KIA MOTORS AMERICA, INC.
   3. Disconnect the connector (A), and then remove the sensor (B).
      NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
      Fig 8: Disconnecting Connector (Bank 1/Sensor 2)

      Courtesy of KIA MOTORS AMERICA, INC.
      Fig 9: Removing Sensor (Bank 1/Sensor 2)

      Courtesy of KIA MOTORS AMERICA, INC.
