Circuit Diagram: (M/T)

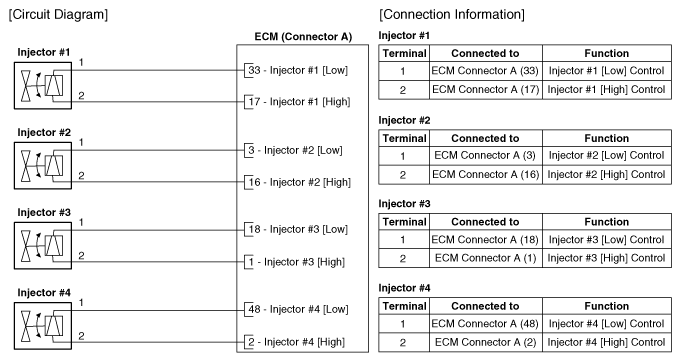

Fig 1: Injector Circuit Diagram (M/T)

G12162485

Courtesy of KIA MOTORS AMERICA, INC.
