Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Release the residual pressure in fuel line (Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
    NOTE: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the KDS/GDS after completion of "Release Residual Pressure in Fuel Line" work.
  3. Remove the intake manifold (Refer to REMOVAL AND INSTALLATION ).
  4. Remove the injector foam (A).

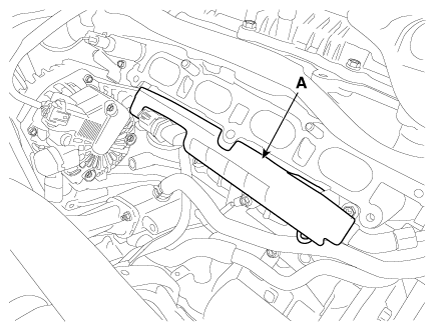

    Fig 1: Removing Injector Foam
    G12162464Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.

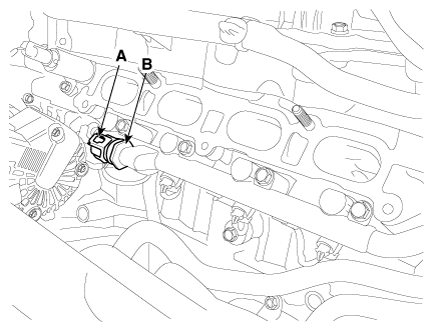

    Fig 2: Disconnecting Rail Pressure Sensor Connector
    G12162465Courtesy of KIA MOTORS AMERICA, INC.
