Repair Procedures: Replacement: Disassembly

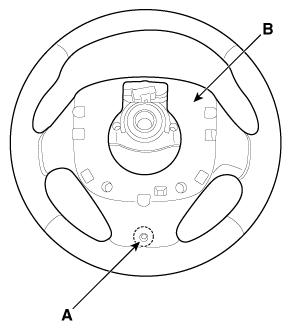

Loosen the screw (A-3 ea) and then remove the lower cover (B) from the steering wheel body.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Fig 1: Locating Lower Cover And Screw
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Locating Lower Cover Screw
Courtesy of KIA MOTORS AMERICA, INC.

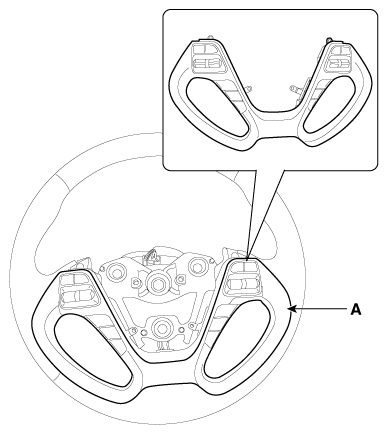

Remove the garnish (A).

Fig 3: Locating Garnish
Courtesy of KIA MOTORS AMERICA, INC.

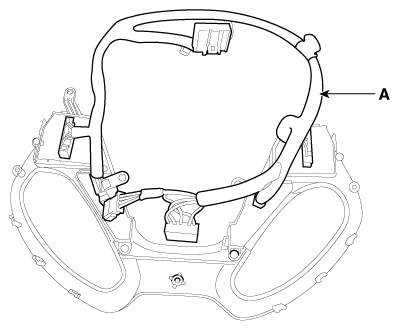

Remove the wiring (A).

Fig 4: Locating Wiring
Courtesy of KIA MOTORS AMERICA, INC.

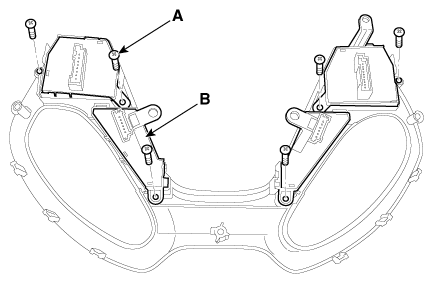

Loosen the screw (A-6 ea) and then remote control switch assembly (B) from the garnish.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Fig 5: Locating Remote Control Switch Assembly And Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of the removal.
